RS PRO 63VA DIN Rail Transformer, IEC 61558-2-6, 230V ac Primary, 24V ac Secondary, Трансформатор

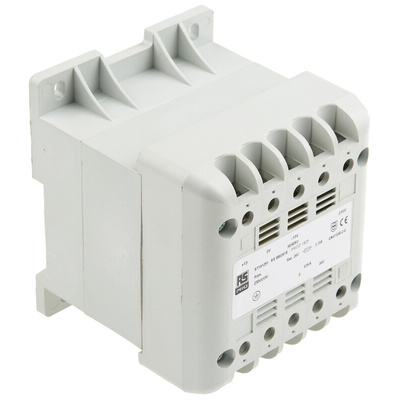

RS PRO 63 VA Panel Mount Transformer, 230 V ac Primary, 24 V ac Secondary

The RS PRO panel-mount transformer lets you isolate your equipment from the mains power supply. This provides extra protection by minimising the risk of an electric shock and preventing electrical overload. You'll find it in commercial and industrial settings, including building projects, factories and workshops.

This compact transformer weighs just 1.2 kg, making it easy to transport between jobs or around worksites. It's panel-mounted, so you can quickly secure it to an equipment panel, external case or enclosure. With an IP21 rating, it's protected from condensation and will stop fingers and objects greater than 12 mm getting in.

Like all of our top-rated RS PRO range, it's been extensively tested by engineers to ensure reliability and durability. For reference purposes, there's a detailed product specification marked on a permanent label.

Features and Benefits

• Primary voltage rating of 230 V ac
• Secondary voltage rating of 24 V ac
• Power rating of 63 VA
• Mounted by DIN rail (Deutsche Institut für Normung, the German Institute for Standardization)
• Dimensions of (L) 106 mm x (W) 90 mm x (D) 87 mm
• Minimum operating frequency of 50 Hz
• Maximum operating frequency of 60 Hz
• Maximum temperature of +130°C
• Weight of 1.5 kg

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
