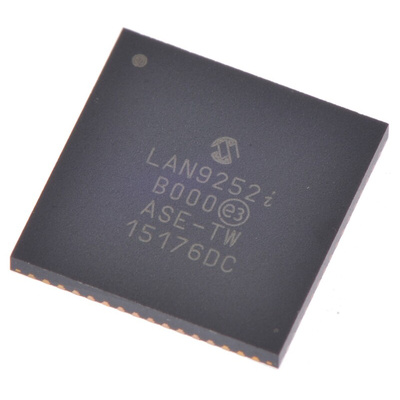

Microchip LAN9252I/ML, Ethernet Controller, 100Mbps MDI, MDIX, MII, RMII, Host Bus, 3.3 V, 64-Pin QFN, Контроллер

LAN9252 EtherCAT® Slave Controllers

The LAN9252 device from Microchip is a 2/3 port EtherCAT® slave controller with dual integrated Ethernet PHYs, each of which contain a full-duplex 100BASE-TX transceiver. The LAN9252 supports HP Auto MDI-X that allows the use of direct connect or cross-over LAN cables. 100BASE-FX is supported via an external fiber transceiver. Included is a 3 port EtherCAT® slave controller with 4K bytes of Dual Port memory (DPRAM), 4 SyncManagers, 3 Fieldbus Memory Management Units (FMMUs) and a 64-bit Distributed Clock. The LAN9252 supports 4 Process Data Interfaces - SPI/SQI, HBI and a 16 Bit Digital IO.

Features

2/3-port EtherCAT® Slave Controller with 3 Fieldbus Memory Management Units (FMMUs) and 4 SyncManagers
Interfaces with most 8/16-bit Embedded Controllers; can also interface with 32-bit Embedded Controllers with an 8/16-bit bus
Dual integrated Ethernet PHYs with HP Auto-MDIX
Cable diagnostic support
100BASE-FX support via an External Transceiver
1.8V to 3.3V variable voltage I/O
Integrated 1.2V Regulator for single 3.3V operation

Ethernet Communications - Microchip

Datasheet

LAN9252 - 2/3-Port EtherCAT Slave Controller with Integrated Ethernet PHYs
