NC5MXX-B, Neutrik Cable Mount XLR Connector, Male, <50 V, 5 Way, Au over Ni Plating, Разъем

Neutrik XLR Connector

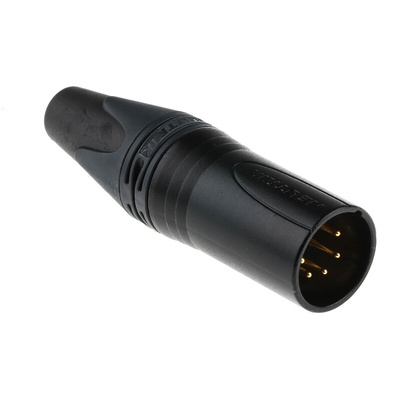

The Neutrik XX series male XLR connector has 5-pole with gold over Nickle-plating. It has a current rating of 7.5A with a voltage rating of 50V. It offers several new features which makes it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features and Benefits

Boot with polyurethane gland gives high protection to cable bending stresses
Branded with unique hologram guarantees genuine and authentic Neutrik product
Coloured rings and boots available for coding or identification
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Internal thread on shell is well protected against any damage
Male connector with improved locking recess without "window", more stringent housing increases durability
Sleek and ergonomic design, valuable and handy
Black metal housing
Operating temperature ranging between -30°C and 80°C

Certifications

IEC 61076-2-103
IEC 68-2-20
IP40 rated
UL 94 HB approved

Neutrik XLR Connectors.pdf
