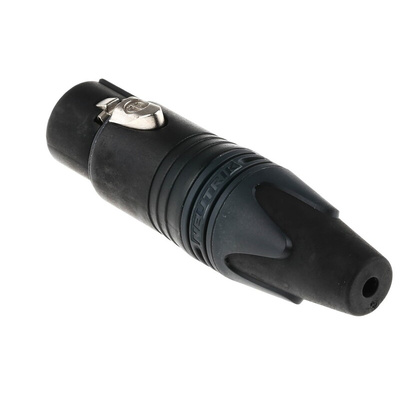

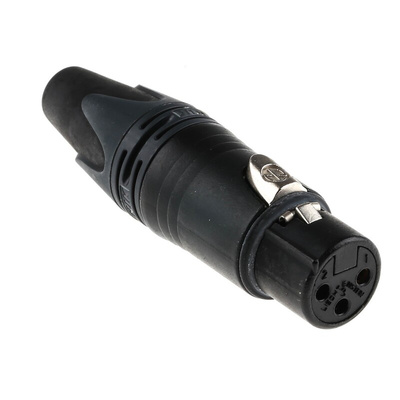

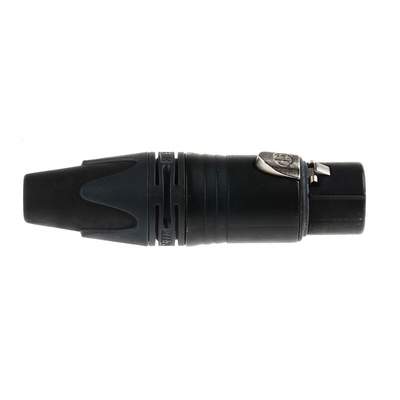

NC3FXX-B, Neutrik Cable Mount XLR Connector, Female, <50 V, 3 Way, Au over Ni Plating, Разъем

Neutrik XLR Connector

The Neutrik X series female XLR connector has three contacts with gold over nickel plating. It has a current rating is 16A and the voltage rating is 50V. It offers several new features which makes it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Warning:
Not to be used as mains connectors

Features and Benefits

Additional ground spring contacts for better shell ground continuity
Boot with polyurethane gland gives high protection to cable bending stresses
Branded with unique hologram guarantees genuine and authentic Neutrik product
Coloured rings and boots available for coding or identification
Female connector with an improved solid metal latch which is larger and easier to handle
Female contact incorporates a solder barrier to prevent the solder running into contact mating area
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Sleek and ergonomic design, valuable and handy
Unique cage design of female contact for low contact resistance and high integrity
Housing material is polyurethane (Boot), zinc die-cast (Shell)
Black in colour
Operating temperature ranging between -30°C and 80°C

Certifications

UL 94 HB approved
IP40 rated
IEC 61076-2-103
IEC 68-2-20

Neutrik XLR Connectors.pdf
