FLUKE 117/PRV240, Fluke 117 Multimeter Kit, Комплект

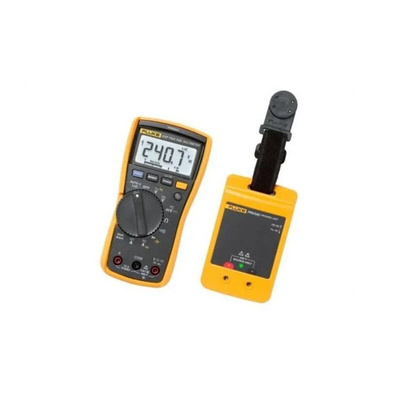

Fluke PRV240 Proving Unit and 117 Multimeter Kit

A 2 device kit from Fluke's range of digital meters ideal for electricians, kit contents include:

Fluke 117 digital multimeter, PRV240 proving unit, holster, test leads - 4mm silicone and user manual.

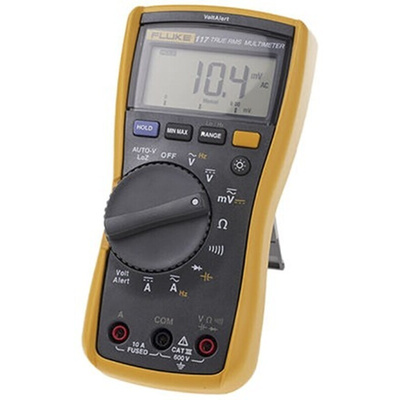

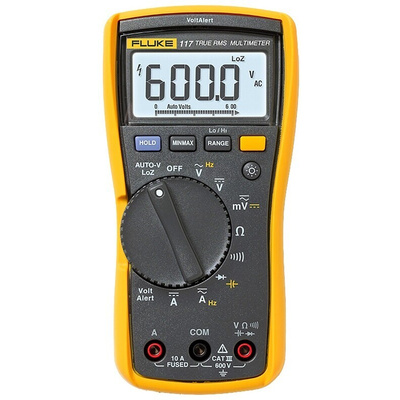

Fluke 117 Multimeter (616-1460)

A compact True RMS digital multimeter, popular in demanding settings such as commercial buildings, hospitals and schools. For non-contact voltage detection and measurement, this multimeter features a 6,000 counts large white LED backlit screen, ideal in dark environments. Able to measure resistance, continuity, frequency and capacitance it has a Min/Max/Average to record signal fluctuations. Safety rated CAT III 600V.

Features and Benefits:

• VoltAlert technology
• AutoVolt auto AC/DC selection
• LoZ Low input impedance to eliminate stray voltage
• Current measurement 20A (30 seconds momentary 10A continuous)
• Resistance, continuity, frequency and capacitance testing capability

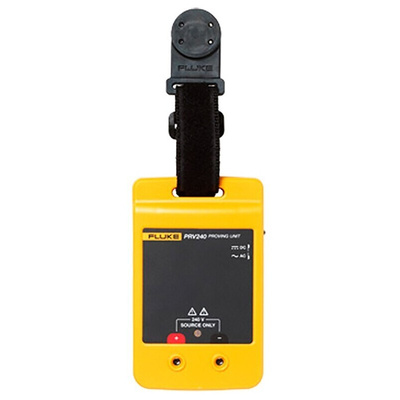

Fluke PRV240 Proving Unit (881-2775)

Pocket-sized and portable this proving unit is unique in that it sources stable ac and dc voltages for both LoZ and HiZ instruments. Unnecessary exposure to shock and arc flash are avoided, this device provides a safe way of testing an electrical test tool is functioning properly before a live test. Including TPAK magnetic hanging strap (331-7402) allowing hands free testing, the PRV240 also has a long battery life of around 5,000 tests per set of 4 x AA batteries.

Features and Benefits:

• LED indicates functionality
• TBT 'Test before Touch' verification
• High and low impedance compatible
• Reduces risk of shock and arc flash

FLUKE Multimeter Kit, Up to 400h Battery Life, -10°C to +50°C Operating Temperature - F1UKE117PRV240

Keep an eye on electrical properties in your industrial applications with this multimeter kit from FLUKE. Along with the main device, you also get a proving unit, enabling you to carry out your testing tasks with ease. The multimeter measures the voltage, resistance and current levels in your circuits. Its proving unit examines the measurement accuracy of your equipment and comes supplied with a TPAK magnetic strap that you can securely attach to metal panels or clips. Both devices function reliably in operating temperatures ranging between -10°C and +50°C.

Features & Benefits

• Proving unit's single LED provides easy troubleshooting
• Proving unit has an operating altitude of 2000m for elevated settings
• Multimeter's 9V alkaline battery offers 400 hours of service life for extended use
• Multimeter has a digital display with bright backlight for clear readings in dimly lit areas

Applications

• Office buildings
• HVAC systems
• Ski lifts

What is VoltAlert technology?

VoltAlert technology as featured in this multimeter is used to detect the presence of current in your electrical circuits. You can identify live voltage without making direct contact with wires, safeguarding you against electric shocks.
