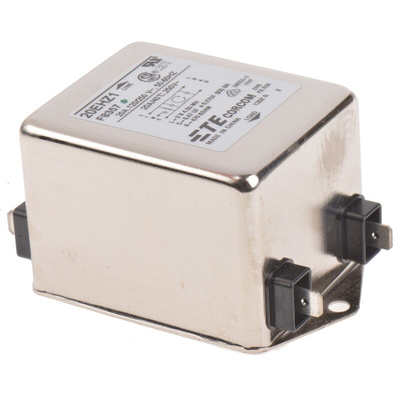

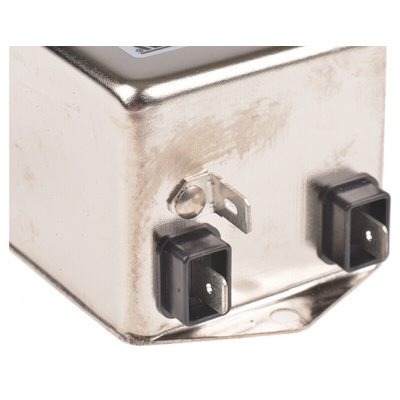

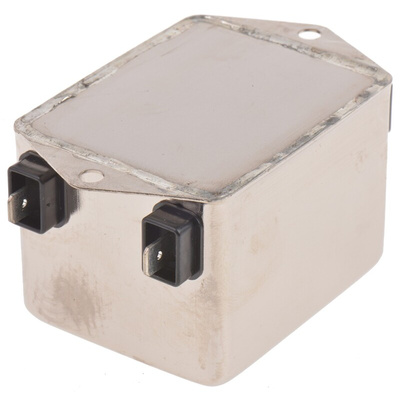

3-1609037-2, TE Connectivity, Corcom HZ 20A 250 V ac 50Hz, Flange Mount EMI Filter, Fast-On, Single Phase, Фильтр

Corcom HZ Series Performance Power Line Filter for Medical Applications

Corcom filters are recognized worldwide for providing EMI/RFI filtering solutions. TE offers over 70 Corcom filter series that are suitable for a wide range of applications across multiple industries. All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE.

The Corcom HZ series of high performance power line filters have been designed for medical applications. These filters provide good attenuation to RFI noise for frequencies between 10kHz to 30MHz. HZ power line filters offer low leakage current whilst being size and cost-effective.

Approvals

UL, CSA and VDE

The TE - Industrial offers over 70 Corcom filter series that are suitable for a wide range of applications across multiple industries. All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE.

Brand
TE Connectivity
Maximum Current Rating
20A
Maximum Voltage Rating
250 V ac
Mounting Type
Flange Mount
Termination Style
Spade
Number of Phases
1
Number of tages

Single Stage
Series
Corcom HZ
Operating Frequency
50 Hz, 60 Hz
Length
89.9mm
Depth
45.9m

Capacitance
740nF
Height
55.63mm
Dimensions
89.9 x 45.9 x 52mm
Inductance
4.55 mH
Minimum Operating Temperature
-10°C
Leakage Current
0.005 mA
Maximum Operating Temperature
+40°C
Resistance
470kΩ
Standards Met
UL 1283
Number of Phases
1
Number of Stages
Single Stage
Series
Corcom HZ
Operating Frequency
50 Hz, 60 Hz
Length
89.9mm
Depth
45.9mm
Capacitance
740nF
Height
55.63mm
Dimensions
89.9 x 45.9 x 52mm
Inductance
4.55 mH
Minimum Operating Temperature
-10°C
Leakage Current
0.005 mA
Maximum Operating Temperature
+40°C
Resistance
470kΩ
Standards Met
UL 1283

20EHZ1 Power Line Filter Datasheet

HZ Series Power Line Filter Datasheet
