1609989-9, TE Connectivity, Corcom BCF 180A 277 (PH to G) V ac, 480 (PH to PH) V ac 50 Hz, 60 Hz, Flange Mount RFI Filter, Screw 3, Фильтр

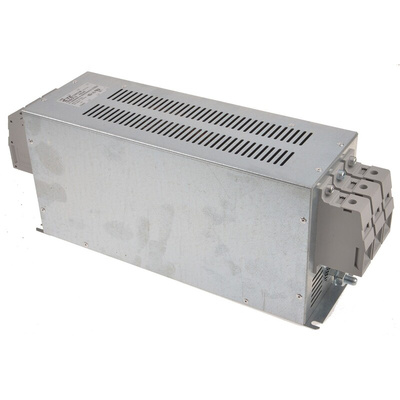

Corcom BCF Series 3-phase Delta RFI Filters

Corcom filters are recognised worldwide for providing EMI/RFI filtering solutions. TE offers over 70 Corcom filter series that are suitable for a wide range of applications across multiple industries. All Corcom filters have been designed and tested for susceptibility and/or emissions applications. They have received approval from major safety agencies throughout the world including UL, CSA and VDE.

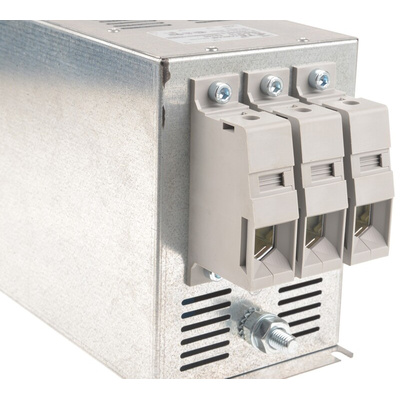

BCF Series 3 phase filters use high quality, insulated safety terminals for input and output. The use of touchsafe terminals prevents inadvertent contact in the most demanding applications while still providing easy connections. These RFI Filters have a compact, lightweight book-form design and provide good common and differential mode performance below 100 kHz. Suitable applications include 3 phase inverters and converters, variable speed motor drives, elevators, escalators, machine tools and process automation equipment.

Features and Benefits

• Single stage
• Screw mounting (flange)
• DIN type terminals
• Compact, lightweight design

BCF Series RFI Filter Line Drawing

High Current AC Power Line Filters Datasheet
