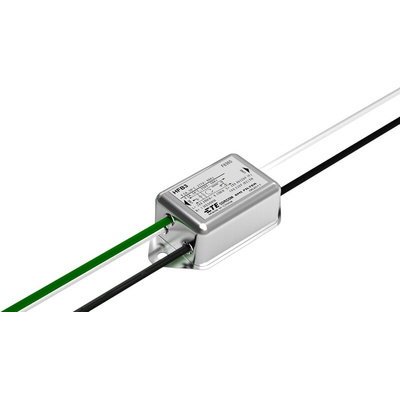

8-1609095-8, TE Connectivity, Corcom FB 500mA 277 V ac/dc 50 Hz, 60 Hz, Panel Mount RFI Filter, Wire Lead, Single Phase, Фильтр

Corcom FB Series Power Line Filter

Corcom filters are recognized worldwide for providing EMI/RFI filtering solutions. TE offers over 70 Corcom filter series that are suitable for a wide range of applications across multiple industries. All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE.

Corcom FB series power line filters have been specially designed for use in lighting devices. These power line filters offer current ratings from 0.5 A to 5 A and good attenuation between 100kHz to 30MHz. Features include solid lead wires, strong differential mode performance and a compact design that enables installation in many standard lighting tracks. Typical applications for FB power line filters include LED displays, fluorescent ballasts, architectural lighting, office and hospital lighting, outdoor signage, lower current industrial application and UV curing lights.

Specially designed for lighting devices, fluorescent lamp and related lighting ballasts
Also suitable for applications requiring 277 Vac or 277 Vdc
Compact size
UL listed to UL 935, the industry standard for florescent ballasts

Approvals

UL 935

HFB3 RFI Filter Datasheet

FB Series Power Line Filters Datasheet
