APV-8-12, MEAN WELL LED Driver, 12V Output, 8W Output, 0 → 670mA Output, Constant Voltage, Драйвер светодиодов

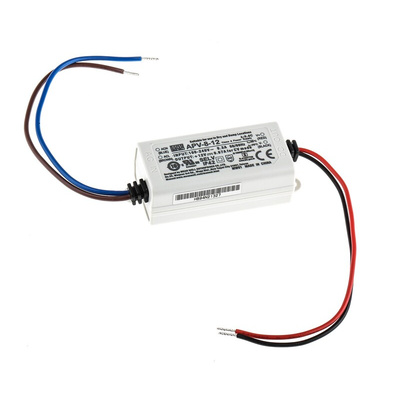

Mean Well 8W Constant Voltage LED Driver / Power Supply - APV-8 Series

The Mean Well APV-8 series of 8W LED Drivers feature a constant voltage design with universal AC input range from 90 to 264 Vac and single output. These low cost, highly reliable LED power supplies come in a Class II design, without FG pin and have a fully isolated 94V-0 flame retardant plastic enclosure. Suitable uses of the APV-8 series of constant voltage LED drivers include indoor LED lighting, LED decorative lighting, LED office lighting and LED signage.

Constant voltage design
Universal AC input / Full range
Class II power unit, no FG
Fully isolated plastic case
IP30 rating
Small and compact size
Cooling by free air convection
Short circuit, overload and overvoltage protection
No load power consumption ˂0.5W
100% full load burn-in test
Low coast high reliability

Standards

UL8750, CSA C22.2 No.250.0-08; ENEC EN61347-1, EN61347-2-13

Approvals

UL, CSA, EN, CE
