APC-8-500, MEAN WELL LED Driver, 8 → 16V Output, 8W Output, 500mA Output, Constant Current, Драйвер светодиодов

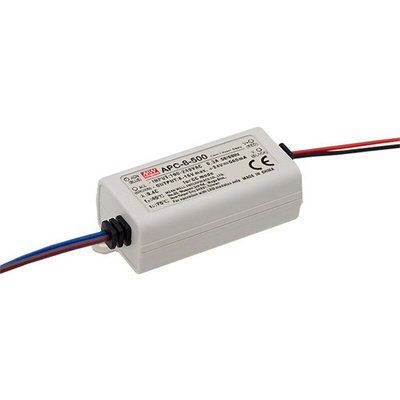

Mean Well 8W Constant Current LED Driver / Power Supply - APC-8 Series

The Mean Well APC-8 series of 8W LED Drivers feature a constant current design with universal AC input range from 90 to 264 Vac. These low cost, highly reliable LED power supplies come in a Class II design, without FG pin and have a fully isolated 94V-0 flame retardant plastic enclosure. Suitable uses of the APC-8 series of constant current LED drivers include indoor LED lighting, LED decorative lighting and LED office lighting.

Constant Current design
Universal AC input / Full range
Class II power unit, no FG
Fully isolated plastic case
IP30 rating
Small and compact size
Cooling by free air convection
Short circuit protection
No load power consumption ˂0.5W
100% full load burn-in test
Low coast high reliability

Standards

UL8750, CSA C22.2 No.250.0-08; ENEC EN61347-1, EN61347-2-13

Approvals

UL, CSA, EN, CE
