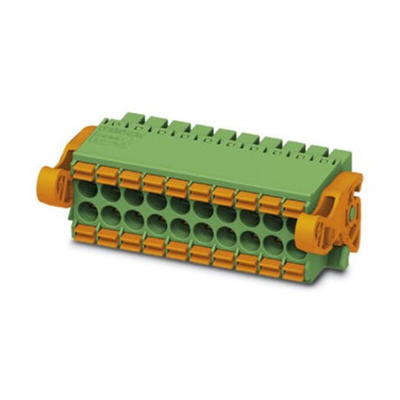

1790580, Phoenix Contact 3.5mm Pitch 24 Way Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination

Phoenix Contact MINI COMBICON DFMC 1,5 Series 3.5 mm Terminal Block Plugs with Lock and Release

MINI COMBICON DFMC 1,5 Series 3.5 mm pitch terminal block plugs which form part of a two-part pluggable terminal block system when used with PCB terminal block headers. These terminal block plugs are designed for use in applications where space is at a premium with the conductor connection and operation on one side. A direct push in connection mechanism enables conductors to be inserted without the need for any special tooling. Actuation levers enable simple release of the connection. These terminal block plugs also feature lock and release levers that provide a secure connection to and release from the mating header.

Features and Benefits

• Designed for space limited applications
• Time saving and tool free direct push in connection
• Actuation levers for simple disconnection
• Defined contact force for long-term contact stability
• Lock and release levers for secure connection to PCB header

Phoenix Contact MINI COMBICON 3.5mm Two Part Terminal Blocks

Datasheet
