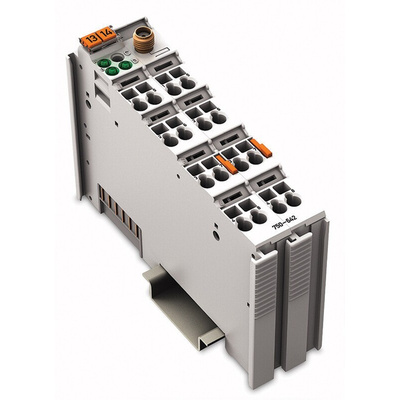

750-642, Wago Power Series Interface Unit for Use with 750 Series, Voltage, Transmitter, Модуль

EnOcean Radio Receiver Module

The 750-642 I/O Module receives radio telegrams from maintenance-free, battery-less and wireless switches and sensors based on EnOcean radio technology.
The module can be used with any controller of the WAGO-I/O-SYSTEM 750. Preprogrammed function blocks make integration easy. The energy required for switch or sensor operation is produced by converting one type of energy (heat, solar or mechanical energy) into usable electrical energy. The radiated energy from the transmitter modules is around one million times smaller than mobile phones. Almost any number of sensors is possible.

EnOcean Radio Receiver Module
Maximum 100 transmitter per module
Connection distances up to 300 m with an external antenna
Short transmission time, high level of protection against external interference
Diagnostic functions
LED status LEDs
Power supply via system voltage Vac/dc

Wago I/O system range

Remote I/O modular system for all functions.
Makes it easier to connect all I/Os thanks to its Cage clamp system®
Communication with PC, PLCs thanks to the various communication protocols.
Colour codes according to type of signal.
Do not forget to order the end module (508-3959)

750-642 - EnOcean Radio Receiver - Manual

RS OUR OFFER - WAGO 750

Datasheet - 750-642
