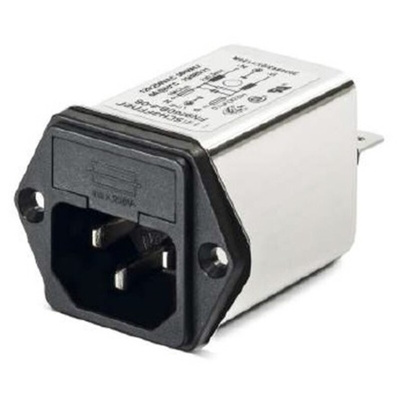

Schaffner 10A, 250 V ac Male Flange Mount IEC Inlet Filter FN261-10-06, Faston 1 Fuse, Фильтр

FN9260 IEC Inlet Filter

Schaffner's FN 9260 power entry module combines an IEC inlet, mains filter with excellent filter attenuation and fuses in a small form factor. A wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution.

Can be used in a wide range of applications such as portable electrical and electronic equipment, medical equipment, household equipment, single-phase & switch-mode power supplies and test and measurement equipment.

Rated currents up to 10 A
For one or two fuses
Optional safety version (A type)
Complies with IEC/EN 60601-1
Snap-in versions (S type)

Schaffner FN92XX & FN32X Series

These high performance filters contain an additional capacitor to give a class X2 capacitor between live and neutral at both the filter input and output.
