7110DIN, Trumeter 7110 Counter Counter, 8 Digit, 10kHz, Счетчик

Trumeter Digital Counter

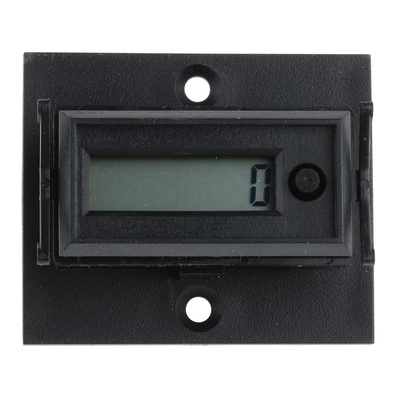

The Trumeter 7110 series 8-digit LCD totalising counter is powered by their own integral lithium battery. It has 7mm black character high contrast LCD display. The counters have a front panel reset pushbutton that can be enabled or disabled by a wiring connection or external contact closure.
It has a maximum frequency count 10KHz.

Features and Benefits

Contact closure/open collector low speed count input with integral de-bounce circuitry
Choice of mounting- front panel with supplied bezel or rear mounting clip
Optional triggering from any voltage between 5VAC and 240VAC or DC using the 7210 DIN adaptor
Replacement for electro-mechanical counters
Panel cut-out dimensions are 45mm x 22.5mm +0.5 -0.0mm
Quadrature signal compatible using 7200DIN QUAD plug-in adaptor
Operation temperature ranges between -10°C and 60°C

Applications

Applications where external power is not readily available
Position, length, rotation, and distance measuring
Event counting

Certifications

CE certified
CULus approved
IP65 rated

7110DIN 8 Digit LCD Self Powered Counter Data Sheet

7110DIN Manual

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
