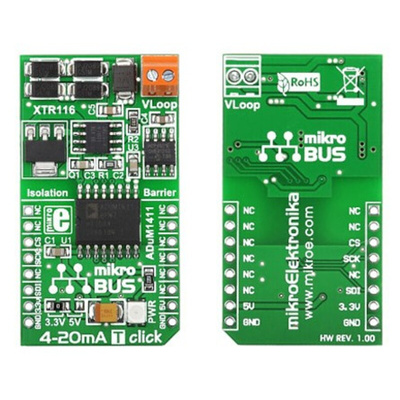

MikroElektronika 4-20mA T Click MCU Add On Board MIKROE-1296

4-20 mA T click mikroBUS™

The 4-20 mA T click is an add-on board that works together with the 4-20 mA R click board (8828948) to create a complete 4-20 mA current loop standard - perfect for industrial process control and test design systems.
When plugged into a microcontroller board, the T click receives an input digital signal via the SPI interface and then sets the output loop current.

Key Features
•mikroBUS™ pinout standard
•ADu M1411 quad-channel digital isolator
•MCP4921 12-bit DAC
•XTR116 4-20 mA current loop transmitter

Note

Click board comes with the header strips soldered.
