MikroElektronika MikroElektronika MAX3232 Development Kit MIKROE-602

MikroElektronika Adapter Board

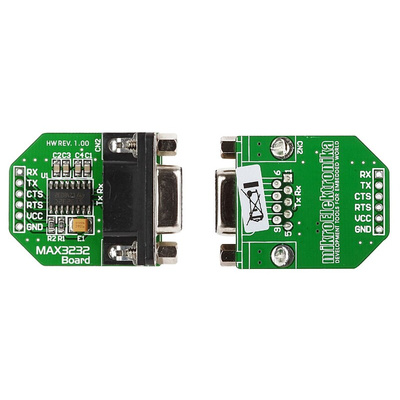

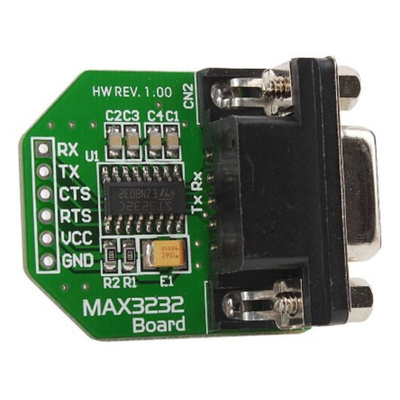

The MikroElektronika MAX3232 adapter board is an ideal interface for adding RS232 communication to your design. This helps you to increase the flexibility of the board to communicate with a variety of microcontrollers. This board acts as an interface to connect additional devices through RS232 communication standard such as PC's serial port. It is connected to a microcontroller via a 1x6 connector CN1. The CN2 connector is used to establish a connection with a RS-232 device. The board receives the data and converts its logic to adjust it to the RS232 standard and then sends it to the device through UART protocol.
This board enable RS-232 performance from a 3.0V to 5.5V operating range.

Note
Click board comes with the header strips soldered.

Features and Benefits

250 kbps baud rates
6 prototyping connection pads to connect to other devices
Energy saving
High Quality SMD Components
Board Is compact & barely bigger than DB9

Applications

Embedded development
Educational institutions
Robotics
Internet of things
Human machine interface
Electronics laboratories
Automation
PC applications

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

MAX3232 Adapter Board Data Sheet
