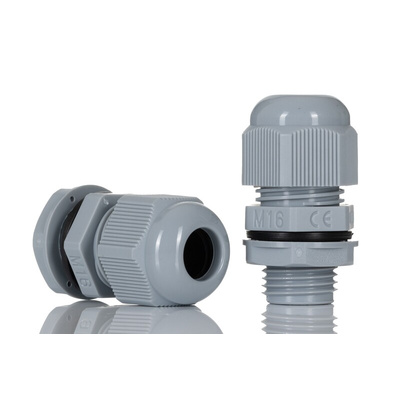

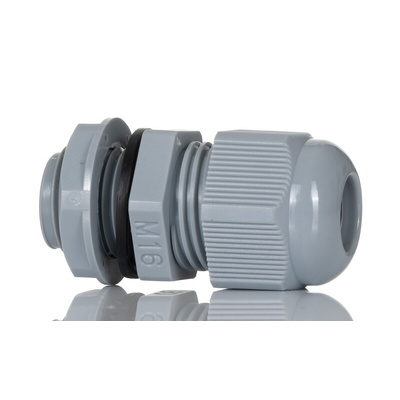

NGM16-DGY, HellermannTyton NGM Series Grey Nylon Cable Gland, M16 Thread, 5mm Min, 10mm Max, IP68, Кабельный ввод

HellermannTyton IP68 M16 Nylon Cable Gland

From Hellermann Tyton, a range of M16 IP68 metric thread cable glands for use with unarmoured cable. Robust in construction, the dome top glands provide excellent cable retention and optimal strain relief ensuring a fully watertight seal is maintained. Installation is quick and easy, with no need to dismantle, simply insert the cable into the gland and tighten. Constructed from tough Nylon 66 the NGM series of cable glands have excellent environmental protection. They are ideal for outdoor applications or environments that are exposed to the elements and require a higher level of protection.

Features and benefits

• Nylon 66
• IP68 ingress protection
• M16 metric thread
• 5 mm to 10 mm cable clamping range
• For used with Non-armoured cable
• Available in black, red, white grey and light grey
• Locknut and sealing washer included

Applications

Cable glands are used in a wide variety of industrial applications to terminate and seal cable into electrical equipment, enclosures and conduit. They are vital in ensuring cables are fitted and retained correctly providing a secure and safe connection. Some of the most common areas are:

• Moving machine parts
• Electrical conduit boxes
• Robotics
• Automation and control panels
• Door entry systems

Environment

The NGM series of cable glands have an IP68 ingress protection rating and are fully sealed. The compression style glands are particularly useful in outdoor applications or harsh environments that can be exposed to moisture, water, dust and debris.

Accessories

A locknut and sealing washer is included with the Hellermann Tyton NGM cable glands.

Note

These glands are NOT designed to be used with steel wire armoured cable.

HellermannTyton Cable Gland, For Use With Non-Armoured Cable, Rubber Seal - NGM Series - NGM16-DGY

Need a robust solution for protecting your wiring from damage? Choose this cable gland from HellermannTyton. When you slip your cable inside the gland and tighten it, contaminants are locked out to stop them from affecting performance. The dome-shaped top also keeps moisture out, so you can use this product in wet conditions. For an extra safety boost, the flame-retardant housing self-extinguishes in under 60 seconds in the event of a fire.

Features & Benefits

• Takes cables between 5 and 10mm in diameter, so it's a versatile pick
• Robust nylon 66 material withstands corrosion, abrasion and mechanical stress to ensure long-term performance
• Safe to use in harsh temperatures between -40°C and +100°C

Applications

• Industrial automation
• Telecommunications facilities
• Control panels

Does this component come with any accessories?

Yes. This cable gland comes with a sealing washer and a locknut to get you up and running immediately.
