Process Panel Meters
Back lit 7mm high 5 digit LCD display (-19999 to 99999)
Configurable analogue inputs: 4-20mA, 0-20mA, 1-5V d.c., -5 to +5V d.c. and -10 to +10V d.c., all fully scaleable so can be configured to represent a wide range of engineering inputs
Supply voltage: 24V d.c.
Non-voltage and open collector inputs suitable for sensors, encoders and pulse inputs from 0.05 to 30Hz and 0.1 to 5000Hz
All inputs are simple to scale by setting the lower and upper limits and what they are to represent which are automatically linearised to the required scale
Accuracy ±0.1% Full Scale
Front panel protected to NEMA 4 (IP66)
Programmable display changes colour when activation or de-activation of outputs
Panel cut-out: 45 x 22.2mm
Dimensions: H24mm x W48mm x D83mm; depth behind panel: 80mm
CE marked in compliance with all current European noise and emissions regulations
Approvals
UL and CSA

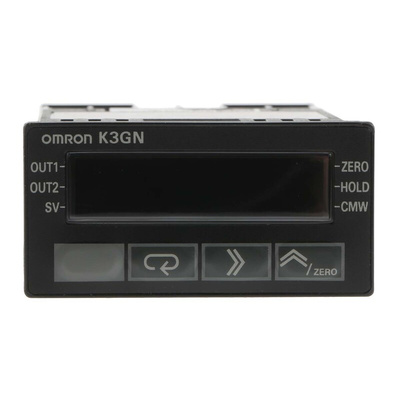

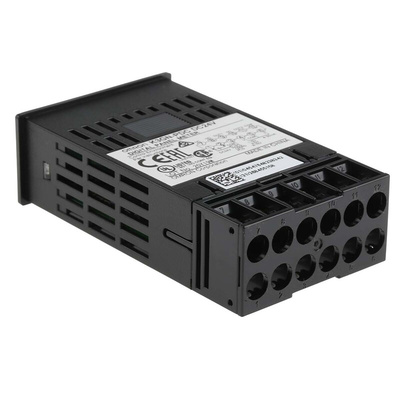

Omron Digital Panel Meter
The Omron digital panel meter is a single panel indicator that covers a wide range of applications. The three main applicable functions are process meter (DC voltage/current input, PNP), RPM processor/tachometer (frequency input) and digital data display for PC/PLC. It has a programmable output operation action, a decimal point position setting, a teaching function for an input range, leading zero suppression and average processing.
Features and Benefits
Multi-range analogue input: applicable for all standard analogue signals
Supply voltage is 24VDC
6 input ranges between 4mA and 20mA/0mA to 20mA, 1VDC and 5VDC/0VDC and 5VDC, ±5 VDC, ±10 VDC
5 KHz maximum input-pulse frequency range
Scaling in a wide range of engineering units
Programmable display changes colour when activation or de-activation of outputs
Backlit 7mm high 5-digit LCD display (-19999 to 99999) colour in red or green
High protection against water and dust
2 relay contact outputs (SPST-NO)
High accuracy: ±0.1% full scale
Very compact 1/32 DIN housing with width of 48mm, height of 24mm and depth of 83mm
Easy to configure through the front panel
Certifications
EN/IEC conformity
CE certified
UL approved
CSA certified
NEMA4X
IP20 rated (Rear case and terminals)
IP66 rated (Front panel)
Omron K3N Series
