2903148, Phoenix Contact TRIO POWER Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 5A, Блок питания

Phoenix Contact TRIO POWER New Generation

The new generation of the TRIO POWER range of power supplies from Phoenix Contact are specially designed for use in machine building.
All functions and the space-saving design are tailored to the high requirements in this field.
The PSU’s feature a robust electrical and mechanical design that ensures the reliable supply of all loads even under harsh ambient conditions.
For high system availability of all machines and systems, these new Trio power supply units offer a dynamic power boost, which starts even difficult loads with 150 percent of the nominal current for five seconds.

Features and Benefits

• Robust design
• Available in single and three phase
• Tool free push in connection
• High MTBF (Mean Time Between Failure) values of over 1 million hours
• Active function monitoring with DC OK LED
• Floating signal contact to ensure the safe supply of all connected 24 V DC loads
• Temperature range from -25°C to +70°C
• Din Rail mounting

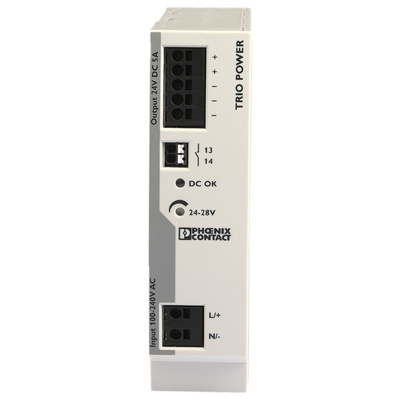

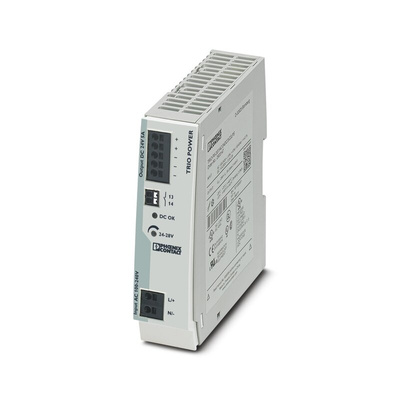

Phoenix Contact Switch Mode DIN Rail Power Supply, 120W Power Rating - TRIO-PS-2G/1AC/24DC/5 - 2903148

This power supply unit (PSU) from Phoenix Contact delivers a reliable supply of electricity and is ideal for use in machine building. It's suitable for a wide range of applications as it can handle 85 to 264V AC and convert it to an output voltage of 24V DC.
Monitoring the status of the device is easy as it has a light-emitting diode (LED) to indicate when the current is running. Wherever you install the unit, you can count on it to withstand daily wear and tear as its housing is made of durable thermoplastic material. For increased electrical safety, it has an integrated 6.3A fuse to protect your equipment against the harmful effects of short circuits. A component like this one is frequently linked up to control units inside industrial equipment.

• Quick and easy DIN rail mounting saves time and effort
• Operating temperature range of -25°C to +70°C ensures it's suitable for use in challenging environments
• MTBF (mean time between failures) of 3,500,000 hours at +25°C provides reliable long-term performance

Datasheet 2903148
