2903151, Phoenix Contact TRIO POWER Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 20A, Блок питания

Phoenix Contact TRIO POWER New Generation

The new generation of the TRIO POWER range of power supplies from Phoenix Contact are specially designed for use in machine building.
All functions and the space-saving design are tailored to the high requirements in this field.
The PSU’s feature a robust electrical and mechanical design that ensures the reliable supply of all loads even under harsh ambient conditions.
For high system availability of all machines and systems, these new Trio power supply units offer a dynamic power boost, which starts even difficult loads with 150 percent of the nominal current for five seconds.

Features and Benefits

• Robust design
• Available in single and three phase
• Tool free push in connection
• High MTBF (Mean Time Between Failure) values of over 1 million hours
• Active function monitoring with DC OK LED
• Floating signal contact to ensure the safe supply of all connected 24 V DC loads
• Temperature range from -25°C to +70°C
• Din Rail mounting

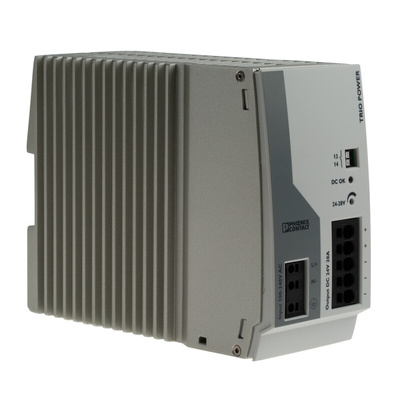

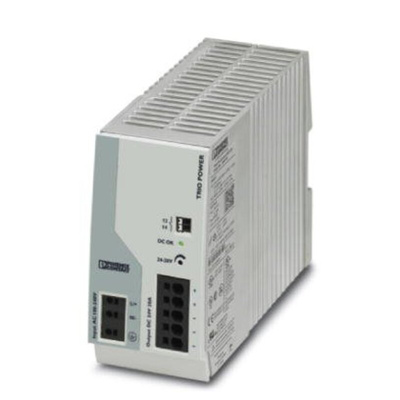

Phoenix Contact Switch Mode DIN Rail Power Supply, 480W Power Rating - TRIO-PS-2G/1AC/24DC/20 - 2903151

Use this robust power supply unit (PSU) from Phoenix Contact to power DIN-rail-mounted components in your industrial machine-building applications. It ensures even power distribution to various devices at a voltage level that's suitable to them. The unit has a sturdy aluminium housing that provides corrosion resistance, so you don't have to worry about decay due to rust. It also has a polycarbonate (PC) hood that offers additional impact resistance, which means it won't break under pressure and you can use it in harsh environments.
This PSU has a floating signal contact that ensures all connected loads receive a safe voltage supply to prevent overload. It also has a green light-emitting diode (LED) indicator that makes it easy to identify when it's functioning properly. You'll find a unit like this useful in your electromechanical control systems.

• Push-in connection terminals for easy, toolless wire connections
• MTBF (mean time between failures) of 1800000 hours for long service life
• Light weight of 1.5kg for easy handling and minimised strain on your setup

Datasheet - 2903151
