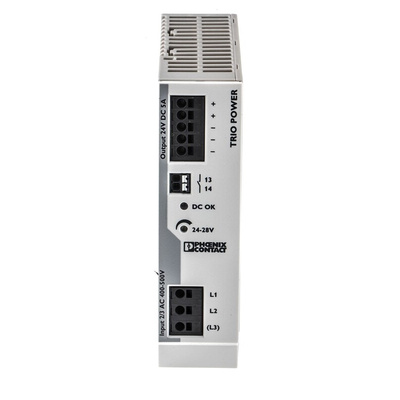

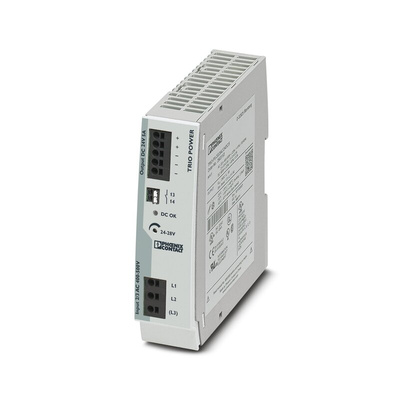

2903153, Phoenix Contact TRIO POWER Switch Mode DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 5A Output, 120W, Блок питания

Phoenix Contact TRIO POWER New Generation

The new generation of the TRIO POWER range of power supplies from Phoenix Contact are specially designed for use in machine building.
All functions and the space-saving design are tailored to the high requirements in this field.
The PSU’s feature a robust electrical and mechanical design that ensures the reliable supply of all loads even under harsh ambient conditions.
For high system availability of all machines and systems, these new Trio power supply units offer a dynamic power boost, which starts even difficult loads with 150 percent of the nominal current for five seconds.

Features and Benefits

• Robust design
• Available in single and three phase
• Tool free push in connection
• High MTBF (Mean Time Between Failure) values of over 1 million hours
• Active function monitoring with DC OK LED
• Floating signal contact to ensure the safe supply of all connected 24 V DC loads
• Temperature range from -25°C to +70°C
• Din Rail mounting

Phoenix Contact Switch Mode DIN Rail Power Supply, 120W Power Rating - TRIO-PS-2G/3AC/24DC/5 - 2903153

Looking for a simple power distribution solution for your DIN-rail-mounted components? Choose this high-performance power supply unit (PSU) from Phoenix Contact. With a rating of 120W, the versatile component is suitable for most low-power to medium-power devices. It converts AC (alternating current) supply voltage to 24V DC (direct current) output voltage and can be used with sensors, solenoid valves and relays.
The unit has an integrated 3.15A fuse that provides short circuit protection by cutting off power in the event of a fault. This safeguards attached devices from damage and operators from injury. It also has a UL94V-0 (Underwriters' Laboratory) rating to indicate that in the event of a fire, burning will stop within 10 seconds. This makes it suitable for use in hazardous areas as it can prevent the spread of fire. You'll find devices like this one commonly used in factories and assembly lines.

• IP20 (ingress protection) rated to withstand dust and objects greater than 12mm in size
• Light weight of 0.4kg for easy handling and minimal strain
• Compact dimensions of 35 (W) x 130 (H) x 115mm (D) to fit into setups with limited space

Datasheet 2903153
