2903155, Phoenix Contact TRIO-PS-2G/3AC/24DC/20 Switch Mode DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 20A, Блок питания

Phoenix Contact TRIO POWER New Generation

The new generation of the TRIO POWER range of power supplies from Phoenix Contact are specially designed for use in machine building.
All functions and the space-saving design are tailored to the high requirements in this field.
The PSU’s feature a robust electrical and mechanical design that ensures the reliable supply of all loads even under harsh ambient conditions.
For high system availability of all machines and systems, these new Trio power supply units offer a dynamic power boost, which starts even difficult loads with 150 percent of the nominal current for five seconds.

Features and Benefits

• Robust design
• Available in single and three phase
• Tool free push in connection
• High MTBF (Mean Time Between Failure) values of over 1 million hours
• Active function monitoring with DC OK LED
• Floating signal contact to ensure the safe supply of all connected 24 V DC loads
• Temperature range from -25°C to +70°C
• Din Rail mounting

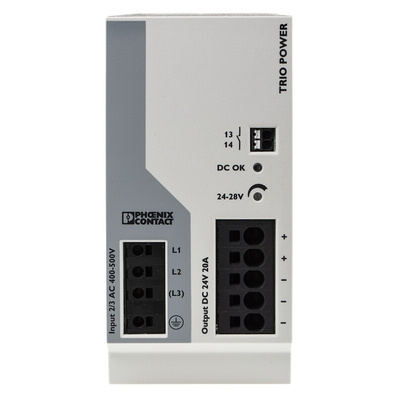

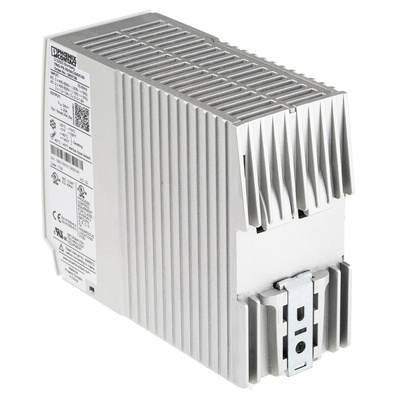

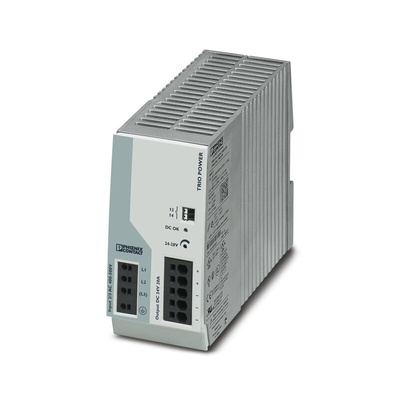

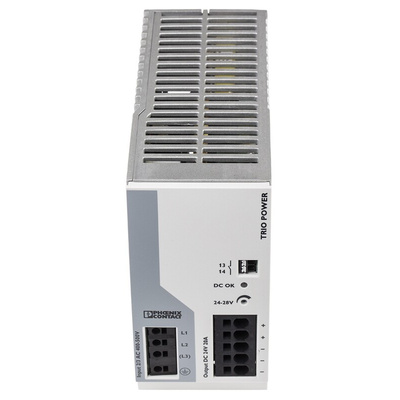

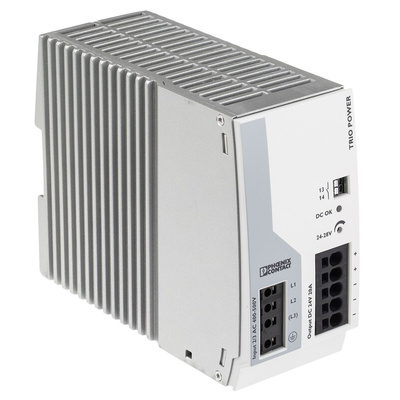

Phoenix Contact Switch Mode Power Supply, 20A, 24V DC - TRIO-PS-2G/3AC/24DC/20 - 2903155

This switch mode power supply from Phoenix Contact is suitable for direct in-field installation. It converts three-phase alternating current (AC) into direct current (DC) and is well-suited to demanding machine-building environments.
A robust electrical and mechanical build makes this power supply a reliable choice for industrial conditions. It has a high mean time between failures of over 1 million hours and is resistant to shock and vibration. Benefit from dependable machine start-up in temperatures as low as -25°C and as high as +70°C. The three-phase design ensures error-free operation, even if one of the phases fails, for improved workplace productivity. Easy-to-use push-in connectors make this device quick to install without the need for tools.
This switch mode power supply is suitable for rail mounting and meets EN 50121-4 (European Norm) standards for electromagnetic compatibility with electronic equipment used in the rail industry.

• Meets UL 508 (Underwriters' Laboratories) safety standards for industrial control equipment
• Compact design with dimensions of 130 (H) x 65 (W) x 160mm (D)
• Easy to clip onto a DIN rail for quick assembly without tools
• Protected against inrush currents and voltage surges for improved electrical reliability

Datasheet 2903155

Brochure - Power Supply Systems

Line Drawing - 2903155

Installation Sheet - Installation Notes for Electricians
