MDU1750CM-C920809, Microwave Solutions Motion Detector Microwave Doppler Sensor Module

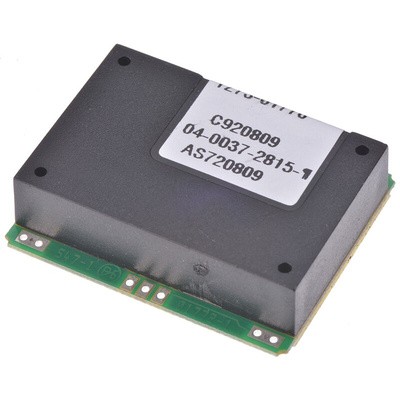

MDU1750CM Doppler Motion Detector Module (Ceiling Mount Version) 10.587 GHz (UK)

The Microwave Solutions MDU1750 Motion Detector Module is an X-Band Microwave Transceiver that utilises the Doppler Effect to detect movement. The MDU1750 emits a microwave signal which is compared against the returned signal for frequency shift, indicating movement. This comparison generates an IF output signal that can be amplified and processed by host system circuitry.

This version of the MDU1750 is optimised for ceiling mount installations and operates at 10.587 GHz making it suitable for applications in the UK.

Features

Coverage Pattern Optimised for Ceiling Mount Installations
High Sensitivity
Integrated Patch Antenna
Small, Flat Profile
Rugged Reliable Construction
Low-Power Consumption
Continuous Wave and Pulse Mode Capability
Tested to EN 300 440
RoHS Compliant

Characteristics

Frequency: 10.587 GHz
Power Output: 10 dBm EIRP (minimum)
Operating Voltage: +5 V dc
Continuous Wave Mode Operating Current: 40 mA (typical)
Pulse Mode Operating Current: 2 mA (typical)
Dimensions: 46 x 37.75 x 13.1 mm
Operating Temperature Range: -10 to +55°C

Typical Applications

Intrusion Alarms
Automatic Door Openers
Speed Measurement
Collision Avoidance
Traffic Control
Presence Sensing

Microwave Motion Detector Modules, Microwave Solutions

Microwave Solutions MDU1750 datasheet
