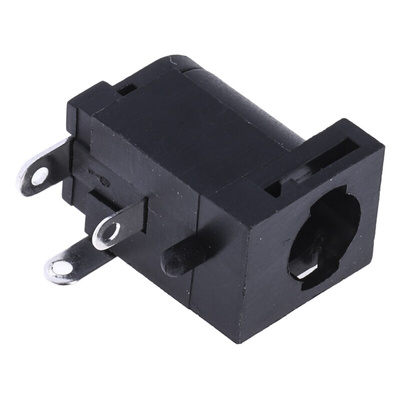

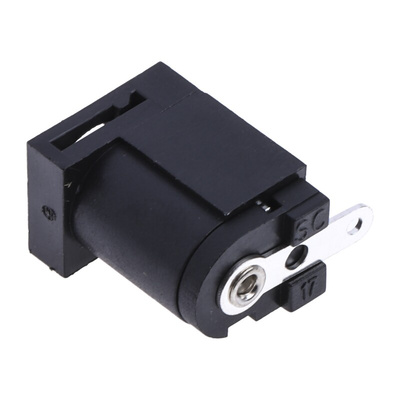

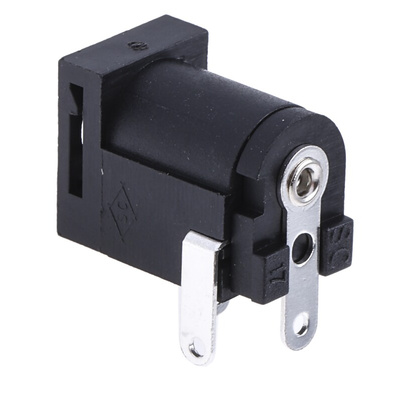

RS PRO Right Angle DC Socket Rated At 2.0A, 16.0 V, Panel Mount, length 15.2mm, Разъем

RS PRO Right Angle DC Socket Rated at 2.0 A, 16.0 V, Panel Mount, Length 15.2 mm

When you need to supply direct current (DC) from a mains connection to your small-to-medium-sized devices, this power socket from RS PRO is the ideal solution. It's designed to connect appliances at a right angle, so it's a good choice for use in areas where space is restricted.
The socket has nickel-plated brass pins and a spring contact for good electrical conductivity and a reliable connection to a circuit board. It's easy to install as it has solder tags for easy termination and screw holes for secure mounting to a surface. For added security, the DC socket features a soft-locking mechanism that prevents the power connector from accidentally disconnecting.
As it's moulded from ABS (acrylonitrile butadiene styrene) plastic, the connector body is hardwearing and highly resistant to physical impact. This keeps the socket connector protected against damage, ensuring a secure and long-lasting connection for your appliances.

Features and Benefits

• Right angle body orientation
• Current rating of 2 A
• DC socket power connector type
• Length of 15.2 mm
• Panel mounting type
• Pin diameter of 2 mm
• Voltage rating of 16 V
• Width of 9 mm

RS Pro Datasheet
