SDX315, Vent-Axia In Line Ducted Fan, 315mm, Вентилятор

8840991
Номер производителя: SDX315Производитель: Vent-Axia
Цена за шт.
115845.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

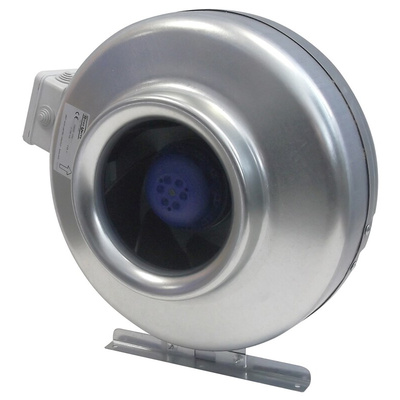

Vent-Axia Duct Fan

The Vent-Axia EURO series in-line mounting centrifugal duct fan has an airflow rate of 983m³/h and a duct diameter of 315mm. It has a supply voltage rating ranging between 220V and 240V. It is designed around an efficient backwards-curved centrifugal impeller. The in-line fan casing is constructed from pressed steel and incorporates an aerodynamically designed airflow guide vane, ensuring maximum performance from the unit whilst maintaining minimum noise levels. It is enabled with an external rotor motor providing a compact design, high-performance and low sound levels. All models are supplied with a simple mounting foot for ease of installation. The impellers are manufactured by injection moulding of a polypropylene resin. The motor and impeller are factory-matched and statically, as well as dynamically balanced in 2 planes.

Features and Benefits

Noise level of 36dB (A) at 2370rpm
Operating temperature ranging between -25°C and 60°C
Quick connect termination
Metal impellers
Static pressure of 700Pa
Round configuration

Certifications

IP44 rated
IP54 rated terminal box

Техническая спецификация
pdfSDX Range Data Sheet
Конфигурация:
Круглый
Монтаж:
In Line
Поток воздуха:
983м³/ч
Серия:
Euro
Специальные функции:
2 Year Warranty, IP54 Terminal Box, Metal Impellers
Тип выводов:
Быстрое соединение
