2700356, Phoenix Contact Optocoupler, Max. Forward 24 V, Max. Input 45 mA DIN Rail Mounting Style, Оптопара

8841155
Номер производителя: 2700356Производитель: Phoenix Contact
Цена за шт.
41739.00 руб. (С НДС) *
Количество 5+ 10+
Цена 40050.00 руб. 38325.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

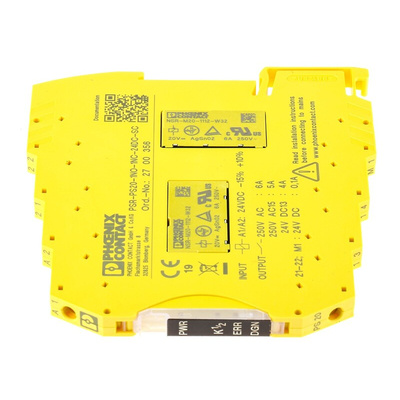

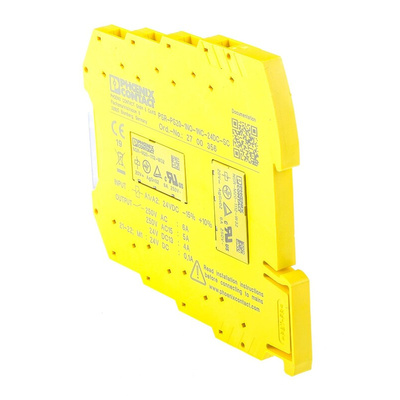

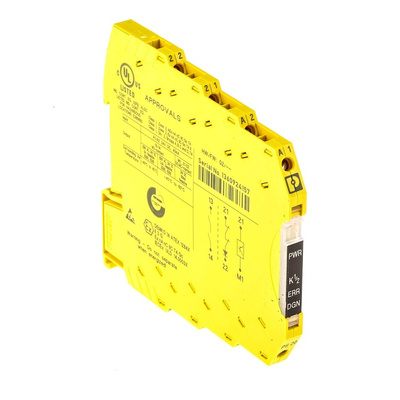

PSR Mini PS20 Optocoupler

The 2700356 from Phoenix Contact is a mini, PSR coupling relay. It's a mini 6.8mm width and has approvals for Class I and zone 2 applications. This optocoupler will have a long-lasting life thanks to its filtering of controller test pulses and has a SIL (safety integrity level) of 3. Not to mention, the 2700356 is a DIN rail mounted module and couple's digital signals to the I.O.

This coupling relay features 1 enabling current path, 1 conformation current path and 1 digital signal output.

Features and benefits:

  • DIN Rail mounted module with a 6.8mm width

  • SIL 3 safety rating for optimum safety (according to IEC 61508)

  • Effortless proof testing – Integrated signal contact

  • Approved for Class I and zone 2

  • Great life span thanks to filtering of controller test pulses

  • -40°C to +75°C operating temperatures

  • Fixed screw terminal block incorporated

  • Low inrush current

  • QR code on housing for easy access to documentation

Applications:

  • Class I – Zone 2

  • High demanding

  • Low demanding

SIL 3:

SIL 3, short for 'safety integrity level' is the highest, and most efficient rating. SIL aligns to the IEC 61508 standard and provides to ease of mind that the risk factor is low.

Accessories:

Flat marker strip – 627-2037

Standards

IEC 61508, EN 61511

Техническая спецификация
pdf2700356 Datasheet
pdf2700356 Instructions
Вид монтажа:
DIN Rail
Время нарастания:
2мс
Глубина:
102.5мм
Диапазон рабочих температур:
-40 → +75 °C
Максимальное прямое напряжение:
24 В
Максимальный входной ток:
45 мА
Напряжение изоляции:
6кВ
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-40°C
Размеры:
6.8 x 93.1 x 102.5 мм
Серия:
PSR-PS20-1NO-1NC-24DC-SC
Специальные функции:
Long Service Life to Filtering of Controller Test Pulses, Approved for Class I, Zone 2 Application
Тип входа:
Постоянный ток
Тип выхода:
Цифровой, PNP
Ширина:
6.8мм
