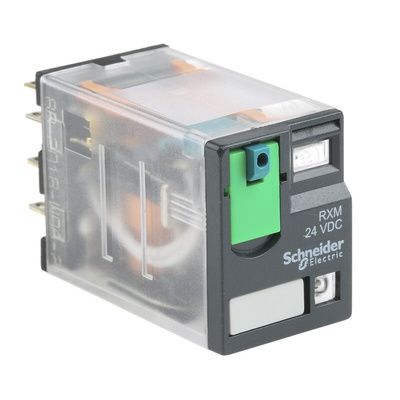

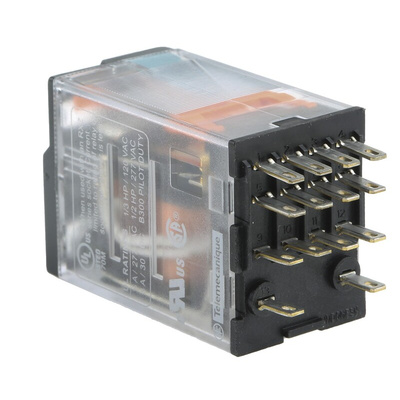

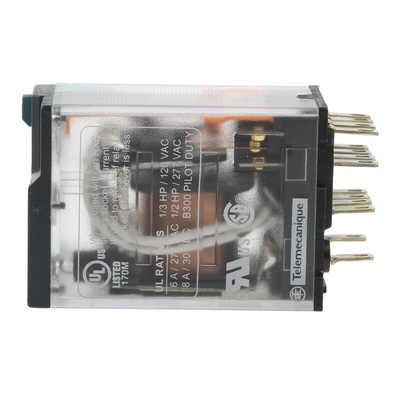

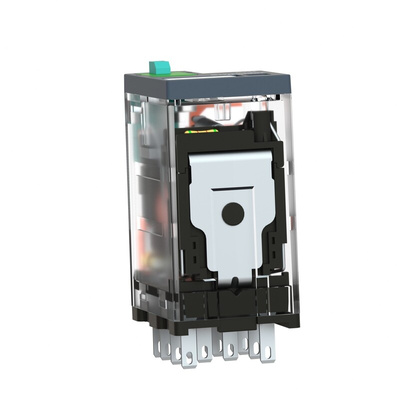

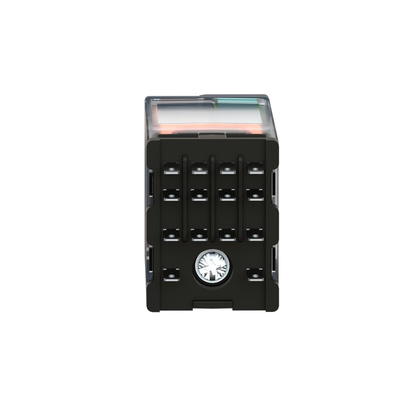

RXM4AB2BD, Schneider Electric Plug In Power Relay, 24V dc Coil, 8A Switching Current, 4PDT, Реле

Schneider Electric Miniature Relays - RXM Series

Introducing Schneider Electrics compact RXM miniature relays with LED. They are often used to increase the functions in electrical enclosures, predominantly for industrial applications (machine/building equipment and HVAC). These relays can be referred to as an electromechanical relay or an industrial switch.

Features & Benefits

• Easy to install and programme, integration into current devices is also easy and they have the functionality to be adapted for all voltages


• Simple to use with no adjustments required for standard applications

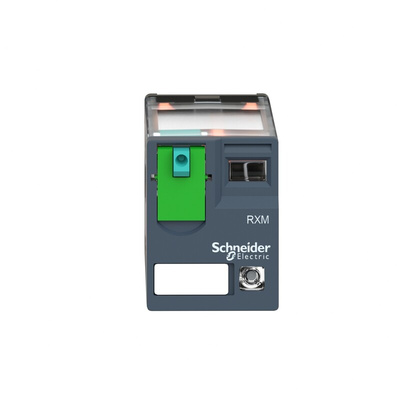

• Each miniature relay from the RXM range features a test button and mechanical indicator of the relay status


• If you are looking for a base for assembly on to a DIN rail or with screws these need to be ordered separately


• Robust and hard-wearing


• Compact in design and in size

What is a non-latching relay and how do they work?

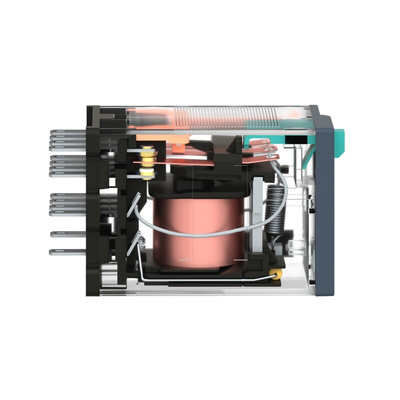

A relay is an electrical switch that is operated by electrical pulses, their primary function is to open and close a circuit. When power passes through a circuit, a relay switches position (usually from NC to NO) using an internal coil which generates a magnetic force. This force then holds the relay in a NO position, when the current is switched off the relay returns to the NC position. This function is what makes these non-latching relays perfect for push-button applications such as keyboards and micro-controller input buttons.

Schneider Electric Power Relay, 20% Utilisation Coefficient, 168W Maximum DC Switching Power - Harmony Relay RXM Series - RXM4AB2BD

Grab this power relay from Schneider Electric to take control of energy in your industrial setup. It's ideal for low-power jobs, thanks to its 24V DC control voltage. A rapid operating rate of up to 1,200 cycles per hour under load makes this a dependable choice that handles demanding tasks. It has four poles, so you can control multiple circuits from one device. A handy LED shows the unit's operating state, so it's easy to keep tabs on performance. Simple plug-in termination makes installation a breeze.

Features & Benefits

• Mechanical lifespan of 10 million operating cycles means it goes the extra mile
• Light 37g weight minimises the load on your infrastructure
• Dimensions of 21 (L) x 47.7 (D) x 27mm (H), so it fits into compact setups

Applications

• Processing and packaging lines
• HVAC systems
• Industrial automation

Is this relay touch-proof?

Yes, it has an IP40 rating, which means it's touch-proof and resistant to screws and wires greater than 1mm in size.

Is this unit reliable in cold conditions?

Yes, it has a broad operating temperature range between -40°C and +55°C, so it's ideal for use in challenging conditions.
