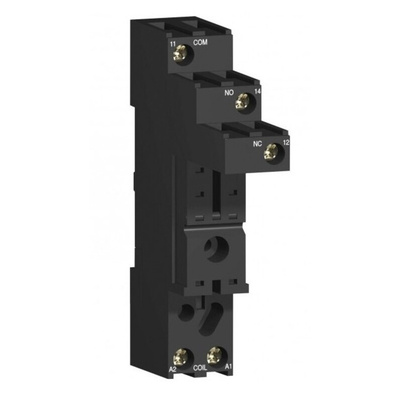

RSZE1S35M, Schneider Electric Harmony Relay RSB 6 Pin <250V ac DIN Rail Relay Socket, for use with Relais Series RSZ

Schneider Electric Relay Socket, 6 Pins, 12A Current Rating - RSZE1S35M

This relay socket from Schneider Electric is an easy way to install, maintain and replace a changeover relay on your equipment. Simply wire it into the machine's power source, select the relay you need from Schneider Electric's Relais RSZ series and use the plug-in connection method for quick and straightforward installation. Its compact dimensions of 92.5 (length) x 15.5 (width) x 65mm (depth) make this socket ideal for use in systems where space is at a premium. The screw terminals provide a safe and secure connection, and an IP20 rating indicates this product is touch-proof for an additional level of protection.

Features & Benefits

• Free from mercury and other toxic heavy metals, reducing environmental impact
• Broad operating temperature ranges of -25°C to +85°C for use in demanding environments

Applications

• Hard-wired logic automated systems
• Washers and dryers

How is this relay socket mounted?

For flexibility, this product offers two mounting options. It can be screw-mounted directly to the panel as needed, or alternatively it's suitable for clip-on mounting on a 35mm symmetrical DIN rail.

Datasheet

Product Environmental Profile
