RSZE1S48M, Schneider Electric Harmony Relay RSB 8 Pin <250V ac DIN Rail Relay Socket, for use with Relais Series RSZ, Контактная колодка

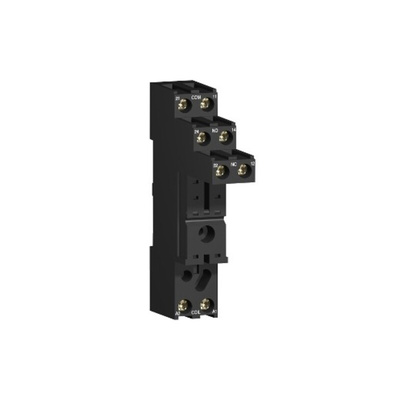

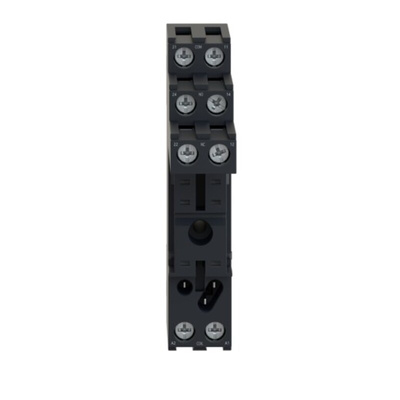

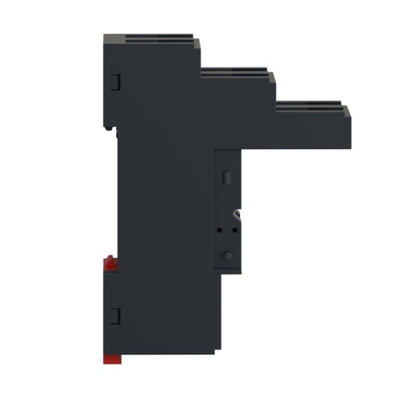

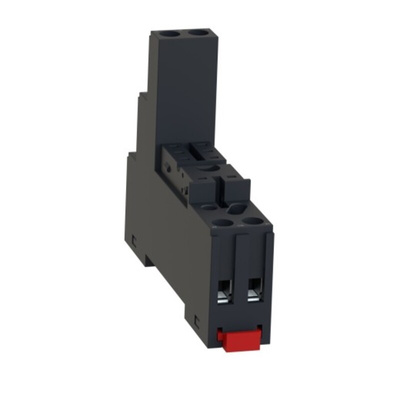

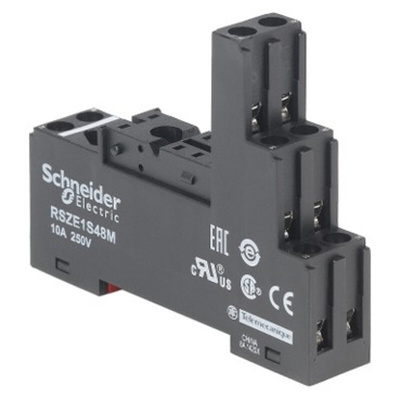

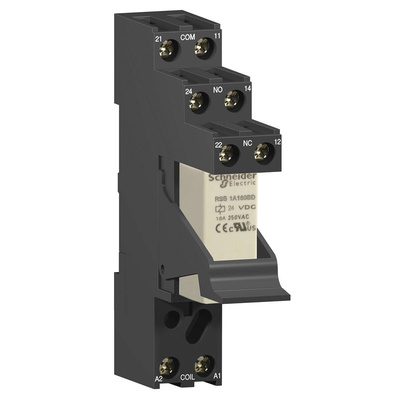

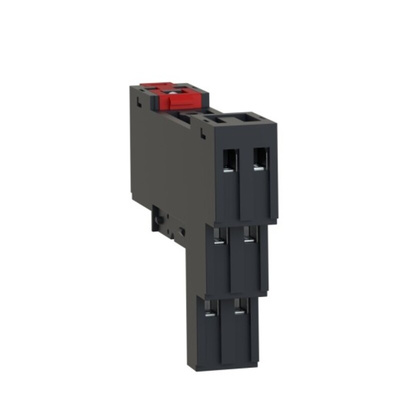

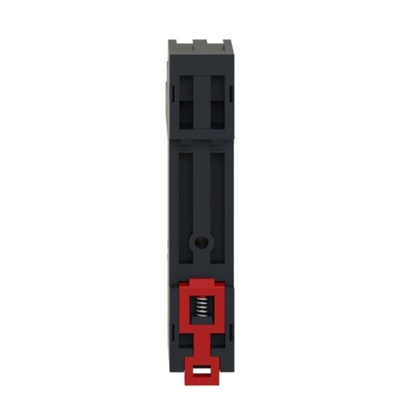

Schneider Electric Relay Socket For Use With RSB1A and RSB2A Series, 10A Current Rating - RSZE1S48M

Directly mount your relay to an electric circuit using this relay socket from Schneider Electric. It provides an interface between the relay and the circuit to ensure a steady connection. As the unit can be clipped onto a DIN rail or screwed onto a panel, installation is simple and flexible. Thanks to a current rating of 10A, it's suitable for use in heavy-duty applications. For versatility and ease of assembly, this socket is compatible with relays from the RSB1A and RSB2A series.

Features & Benefits

• IP20 rating indicates it's finger-safe and protected against objects larger than 12mm
• Broad operating temperature range between -25°C and +85°C for use in demanding environments
• Light weight of 0.05kg for minimal strain on your equipment
• Screw terminals for a secure electrical connection, even with vibration

Applications

• Control panels
• Automotive engineering
• Industrial automation

Where should I use a relay socket?

As it eliminates the need to directly plug your relay into the circuit, you can use a relay socket for ease of access in areas where you need to frequently maintain and replace relays.

RSZE1S48M Datasheet

RSZ E1S**M Instruction sheet

Catalogue - Electromechanical Relays

Product Environmental Profile
