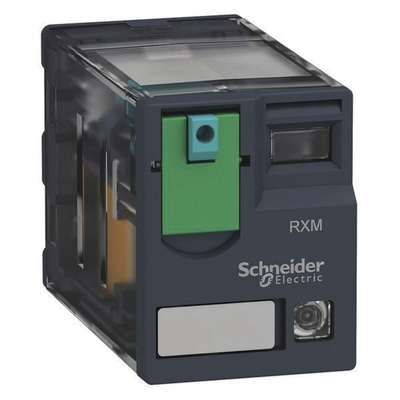

RXM4GB2BD, Schneider Electric Plug In Power Relay, 24V dc Coil, 3A Switching Current, 4PDT, Реле

Schneider Electric Miniature Relays - RXM Series

Introducing Schneider Electrics compact RXM miniature relays with LED. They are often used to increase the functions in electrical enclosures, predominantly for industrial applications (machine/building equipment and HVAC). These relays can be referred to as an electromechanical relay or an industrial switch.

Features & Benefits

• Easy to install and programme, integration into current devices is also easy and they have the functionality to be adapted for all voltages


• Simple to use with no adjustments required for standard applications


• Each miniature relay from the RXM range features a test button and mechanical indicator of the relay status


• If you are looking for a base for assembly on to a DIN rail or with screws these need to be ordered separately


• Robust and hard-wearing


• Compact in design and in size

What is a non-latching relay and how do they work?

A relay is an electrical switch that is operated by electrical pulses, their primary function is to open and close a circuit. When power passes through a circuit, a relay switches position (usually from NC to NO) using an internal coil which generates a magnetic force. This force then holds the relay in a NO position, when the current is switched off the relay returns to the NC position. This function is what makes these non-latching relays perfect for push-button applications such as keyboards and micro-controller input buttons.
