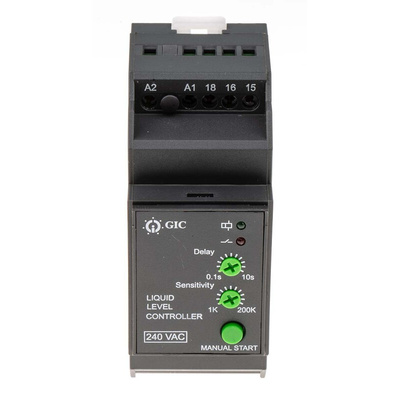

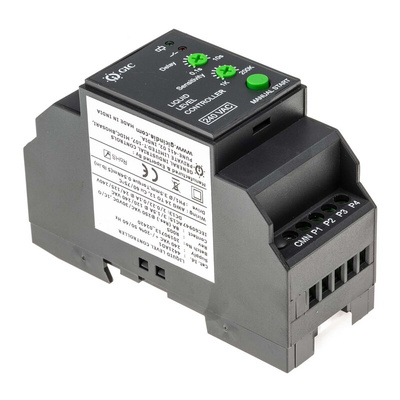

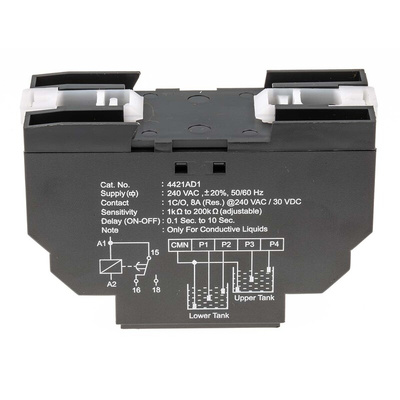

4421AD1, GIC 44 Series Level Controller -, 240 V ac, Контроллер уровня

GIC Level Controllers

The GIC 44 series liquid level controller is used to detect the liquid level in a tank where liquids are electrically conducting and device controls the relay output. It has a 240VAC supply voltage and +/-20% accuracy. The mode of operation can be filling and draining, filling only one tank with dual-level monitoring, filling only one tank with single-level monitoring, draining only one tank with dual-level monitoring and draining only one tank with single-level monitoring.

Features and Benefits

Adjustable reaction timer from 0.1 second to 10 seconds
Fully automatic operation enabling both draining and filling at the same time with a single device
Protects submersible pumps against dry running and prevents overfilling
Enables maximum utilization of incoming liquid supply
Specially designed corrosion and shock-resistant sensors to ensure problem free operation
Includes provision for manual start adjustable sensitivity level between 1kohm and 200kohm
Power consumption is 3VA
2m enclosure with Din rail mount
Adjustable sensitivity of liquid between 1kohm and 200kohm

Certifications

CE certified
IEC 61000-3-2
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-11
CISPR 14-1
IEC 60947-5-1
IEC 61010-1
UL 508 listed
IP20 rated

Compatible Sensors

• This Level Controller can be used with a GIC level sensor such as 182-8937
