930061100, Hirschmann Test & Measurement Black Male Banana Plug - Solder Termination, 30 V ac, 60V dc, 30A

VQ 30 CAT I, 4mm Series Test Plugs

Hirschmann test and measurement CAT I, 4mm series VQ 30 type test plugs, fully mating spring loaded connector, shatter-proof, with flexible insulated sleeve and 4mm diameter transverse hole. The tapering sleeve end also serves as strain relief and kinking protection for the lead. The test connectors are available in three colours and feature solder connection up to maximum cable cross-section of 2.5mm².

Features and Benefits:
• Rated at 30A 30VAC/60VDC
• Nickel plated brass
• Temperature range -25 to +70° C

Hirschmann Test & Measurement Banana Plug

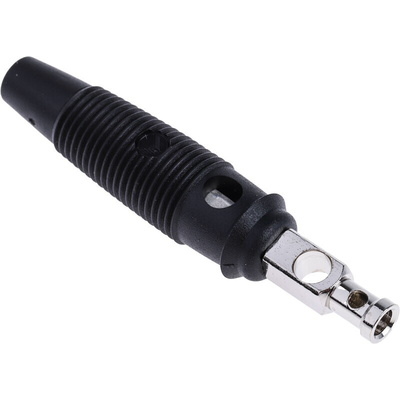

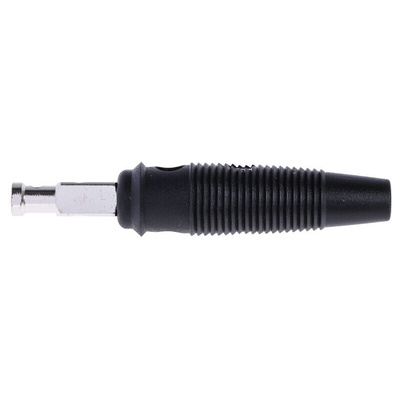

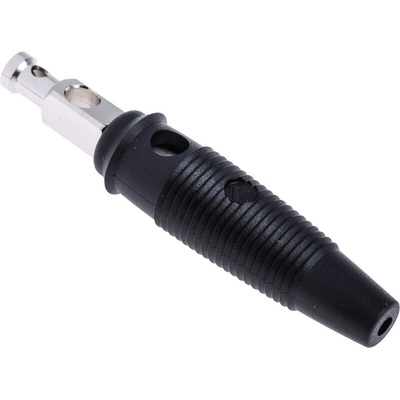

The Hirschmann Test & Measurement black banana plug is a male, spring-loaded, fully mating, pin connector. It has a shatterproof and a flexible insulated sleeve. The connector has a voltage rating of 30VAC,60VDC with a current rating of 30A. The tapering sleeve end also serves as kinking protection for the lead. The socket in the rear allows other 4mm plugs to be stacked in-line.

Features and Benefits

Nickel-plated brass contact material
PVC insulation material
Screw connection up to maximum cable cross-section of 2.5mm²
Length is 61mm

Applications

Electrical connections
Electronic connections

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

VQ 30 CAT I, 4mm Series Test Plugs
