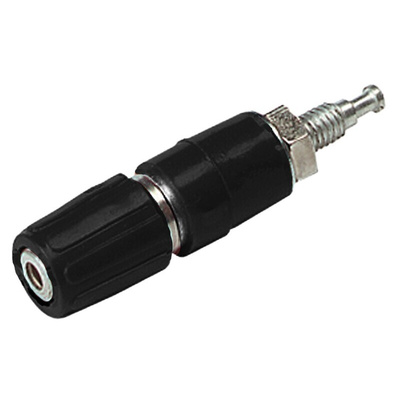

930268100, Hirschmann Test & Measurement Black Female Banana Socket, 2mm Connector, Solder Termination, 6A, 30 V ac, 60V dc

MPK1, Hirschmann Test and Measurement CAT I, 6A, 2 mm Miniature Panel Sockets

From Hirschmann Test and Measurement, this CAT I, 6A, 2mm diameter miniature panel sockets with transverse hole, is available in red and black colours. The CAT I socket features an insulated, gold plated copper beryllium contact spring, and a tin-plated brass threaded bolt with a solder connection. These 2mm panel mount sockets are part of the Hirschmann 2mm system and are suitable for installation in equipment chassis and switch panels up to a maximum wall thickness of 3.5 mm.

Features and Benefits:
• Rated at 6A, 30 V ac, 60 V dc
• 3.5mm wall thickness
• Spring loaded socket
• 6 mΩ contact resistance
• Temperature range -20 to +60° C
• CAT I

2mm Hirschmann Test Connectors

MPK1,2 mm Miniature Panel Sockets
