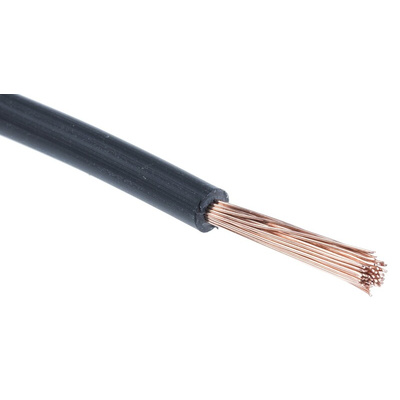

RS PRO Black 2.1 mm² Hook Up Wire, 14 AWG, 50/0.25 mm, 100m, Cross Linked Polyolefin Insulation

RS PRO Equipment Wire, Black, 2.1 mm², 100 m

Keep this equipment wire in your workshop for internal electrical wiring jobs. You can use this wire to connect power systems to each other or to extend the cabling of a piece of equipment. The wire comes on a reel so it's easy to dispense for use as and when you need.
This cable comes with copper wiring that can withstand hot temperatures without excessive ageing. It's insulated with an abrasion-resistant polyvinyl-chloride (PVC) sheath, so it can handle bumps and knocks while still protecting the unit's internal wiring.
For safety in the event of a fire, the cable's jacket is also insulated with flame-retardant cross-linked polyolefin (XLPO). The product is Restriction of Hazardous Substances (RoHS) compliant so you can be sure it contains only minimal amounts of any harmful materials.

Features and Benefits

• Wire size of 14 American Wire Gauge (AWG)
• Single-core cable
• Tinned-copper conductor material
• 50 core strands of 0.25 mm
• Cross-sectional area of 2.1 mm²
• Cross-linked polyolefin (XLPO) insulation material
• Insulation wall thickness of 0.8 mm
• Length of 100 m
• Maximum operating temperature of +150°C
• Outer diameter of 3.67 mm
• Black sheath colour
• Unshielded
• Restriction of Hazardous Substances (RoHS) compliant
• Underwriters' Laboratory (UL) 3288 and 3289 compliant
• Canadian Standards Association (CSA) 1503 compliant
• Voltage rating of 600 V
• UL3289 wire style
• ZYRAD type
