0850-0550, BARTH lococube mini-PLC Series PLC I/O Module for Use with STG-550, 7 → 32 V dc Supply, Digital Output, 5-Input,, Логический модуль

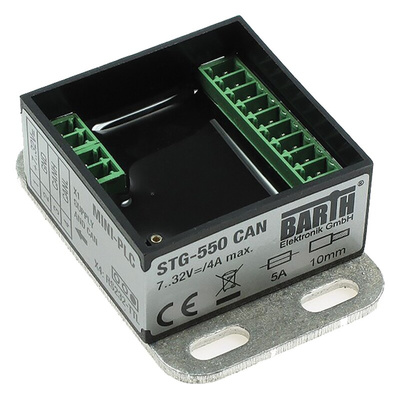

STG-550 CAN - Mini-PLC

The STG-550 CAN is a highly integrated programmable logic controller providing outstanding graphical programming capability at lowest current consumption and small form factor.
The CAN bus allows the user to connect a variety of network components to the Mini-PLC, for example: displays, stepper motors or CAN sensors.
The controller does not need any peripheral components to operate. Both inputs and outputs features highly integrated and rugged protection circuits to operate the Mini-PLC in harsh environment.
Due to it is extremely low current consumption and wide operation voltage range the STG-500 is well suitable for 12 and 24 V battery-powered systems. These outstanding features open up a variety of application fields in industrial, automotive and maritime technology.

Small and universal CAN Logic Controller
3 analog inputs 0-30 Vdc
2 digital inputs up to 10 kHz
4 power outputs up to 1.5 A
1 power PWM output 2 A/1-5 kHz
Reliable solid-state outputs
Programmable status LED
1 CAN Interface
TTL-232/USB connection to PC
Integrated temperature sensor
Intuitive graphical programming capability
Wide operating voltage range 7-32 Vdc
Very low current consumption
Vibration resistant and rugged sealing
Universal aluminium mounting plate

Also available as a:
- STA-550 CAN Starter Kit, stock no. 885-0890
- STG-500 Controller, stock no. 864-4535
- STA-500 Starter Kit, stock no. 864-4532

Applications:
Industrial Automation
Building Automation
Automotive Technology
Maritime Technology
Environmental Technology
Light and Show Technology

Software:
The software is available as a free online download:

http://micon-l.de/en/downloads.html

Note

A product is NRND (Not Recommended for New Designs) is in production and available, with no obsolescence scheduled. However, we recommend against using these parts for new designs because there are better or more economical alternatives.
