0850-0095, BARTH lococube mini-PLC Series PLC I/O Module for Use with STG-95, 7 → 32 V dc Supply, Analogue Output, 8-Input,, Логический модуль

STG-95 - Mini-PLC

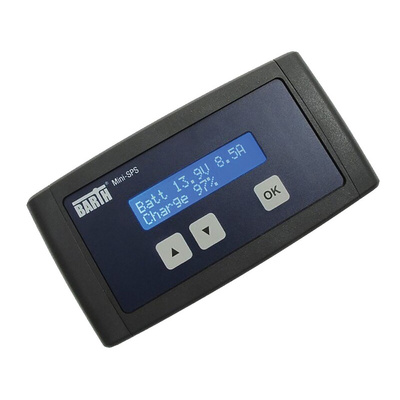

STG-95 Mini-PLC with a double-spaced TFT-Display with blue LED-backlight. With a mounting depth of only 15mm and the open hardware concept the STG-95 opens up completely new application fields.

Mini-PLC with LC-Display
Panel mounting enclosure
Wide supply voltage range 7-32 Vdc
Ideal for 12/24 V power supply systems
8 analog/digital inputs 0-30 Vdc
Analog/digital converter with 10 bit resolution
8 Short circuit- and overload protected outputs (1.5 A each)
2 PWM outputs up to 32 kHz
2 frequency counter inputs up to 65 kHz
I²C connection
SPI connection
Internal voltage monitoring
LCD 2x16 characters with blue backlight
Freely programmable LCD
3 Enter Keys for easy menu navigation
Programming in BASIC, C or Assembler
EEPROM memory data retention >40 years
Fully ESD and EMV tested design

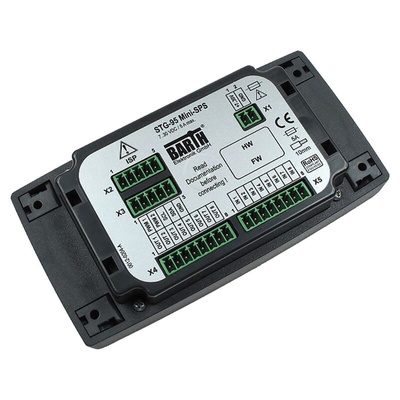

Easy connection provided by spring terminals
IP40 protection
Supplied with spring terminal connectors and user manual

Note

A product is NRND (Not Recommended for New Designs) is in production and available, with no obsolescence scheduled. However, we recommend against using these parts for new designs because there are better or more economical alternatives.
