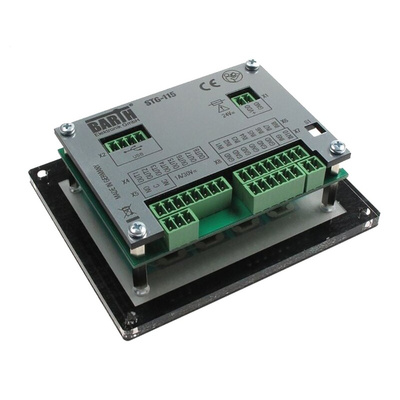

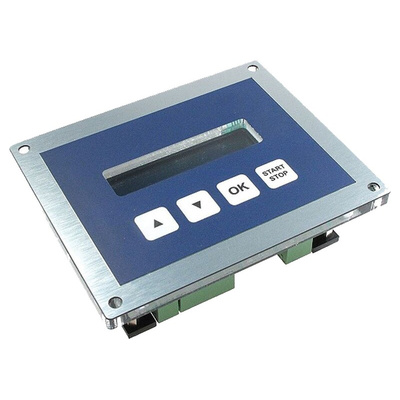

STG-115 - Mini-PLC Panel Mount Version

The STG-115 is the panel mount model of the established Mini-PLC series which comes with a two row backlight dot matrix LCD.
It’s compact size in combination with the easy-to-use graphical programming capability opens up completely new application fields.
The device which is connectivity and flexibility is the ideal standard product for a wide range of applications.

Panel Mount Mini-PLC with Display
Ideal for 24 V power supply
8 Analog/Digital Inputs 0 to 30 Vdc
2 Analog Inputs 0 to 10 Vdc
2 Current Loop Inputs 4 to 20 mA
Analog/Digital converter with 10 bit resolution
8 overload protected outputs (1.5 A each)
1 relay output 1 A / 30 Vdc
LCD 2´16 characters with blue backlight
Backlight controlled by software
Freely programmable LCD
4 enter keys for easy menu navigation
Intuitive graphical programming with miCon-L - software
Free graphical development software suite
EEPROM memory data retention >40 years
Fully ESD and EMV tested design
Easy connection provided by spring terminals
USB interface on board
Wide operating temperature range -10 to +55 °C
OEM versions available
Shallow mounting depth of only 36 mm
Measurements (LxHxD): 110 ´ 90 ´ 36 mm

Applications:
Industrial Automation
Building Automation
Metering and Dispensing Technology
Environmental Technology
Light and Show Technology

Software:
The software is available as a free online download:

http://micon-l.de/en/downloads.html

Note

A product is NRND (Not Recommended for New Designs) is in production and available, with no obsolescence scheduled. However, we recommend against using these parts for new designs because there are better or more economical alternatives.
