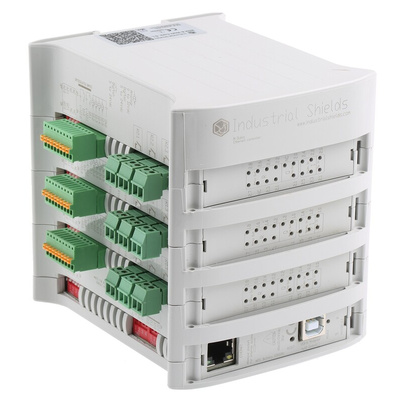

IS.MD57.base, Boot & Work Corp S.L Industrial Shields M-Duino Series PLC CPU, Analogue, Digital, Relay Output, 18-Input, Analogue, Digital Input, ПЛК

Industrial Shields PLC CPUs

The Industrial Shields PLC has 21 inputs and 36 outputs Modbus networking computer interface CPU. It has a programming capacity of 256kB. It is a compact PLC based on Open Source Hardware (OSH) technology. It is available with different Input/Outputs units. It is possible to get the immediate status of all the parameters, data inputs and outputs of the PLC through the USB port from the computer. All components can be configured to work as a master or slave in its master-slave connection via I2C.

Features and Benefits

Programming via a USB port
Programming language is Arduino IDE
Hardware is realized with an Arduino Leonardo
Safety industrial communications
I2C communication to connect up to 127 elements
Serial port is RS232/RS485
Power supply ranges between 12VDC and 24VDC
DIN rail mounting
Operating temperature ranges between 0°C and 45°C
Communication port types are: Ethernet, I2C, RS232, RS485, SPI, TTL and USB

Applications

Industrial automation
Robotics
Automobile industry

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
