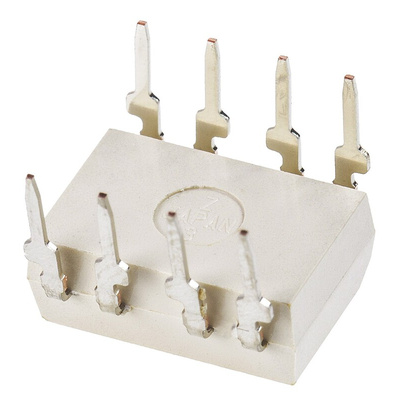

Toshiba, TLP352F(D4,F) Photo IC Output Optocoupler, Through Hole, 8-Pin DIP

Photocoupler, Buffer Logic Output (Totem-Pole), Toshiba

A range of Toshiba photocouplers featuring logic driven push-pull (“totem-pole”) outputs.

The Toshiba TLP352 is a Photocoupler in a DIP8 package that consists of a GaAℓ as infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC chip. It provides guaranteed performance and specifications at temperatures up to 125

Buffer logic type
Output peak current:
±2.5 A (max)
Operating temperature: -40 to 125
Supply current: 3.0 mA (max)
Supply voltage: 15 to 30 V
Threshold input current: 5 mA (max)
Propagation delay time: 200 ns (max)
Common-mode transient immunity:
±20 kV/
μs (min)
(9) Isolation voltage: 3750 Vrms (min)

Optocouplers, Toshiba

TLP352F, Photocoupler with Buffer Logic (Totem Pole Output)

Photocouplers and Photorelays
