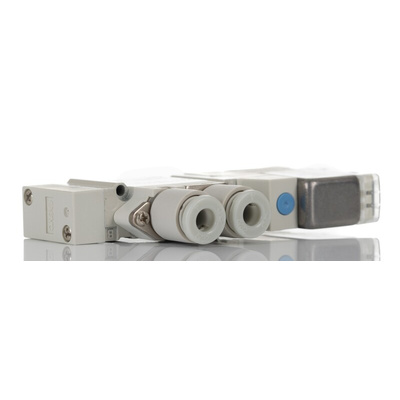

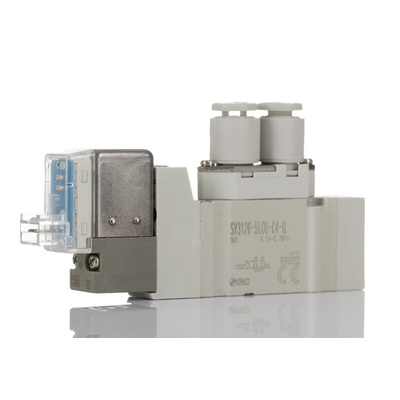

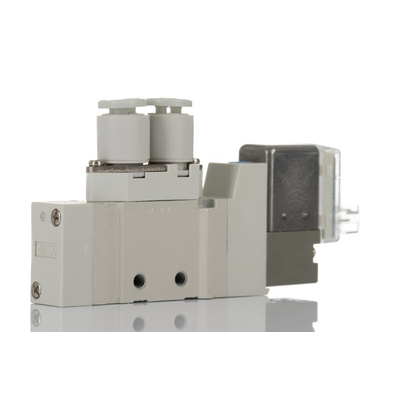

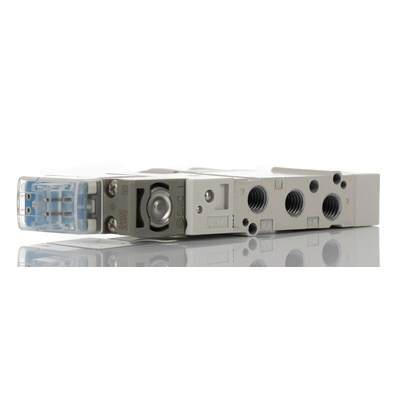

SY3120-5LOU-C4-Q, SMC Pneumatic Solenoid Valve - Solenoid SY Series 24V dc, Клапан

SMC Solenoid Valve

The SMC SY3000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 4mm Rc port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. This valve has a space-saving design means that it can be individually mounted onto sub plates or configured onto base mounted manifolds. It has a pilot exhaust and a copper-free design. This valve can be used singly or with a manifold system. The low power consumption enables direct operation by a PLC. The valve cover also uses stainless steel, which makes it stronger. This valve is available with a 300mm lead wire without a connector.

Features and Benefits

Solenoid power consumption is 0.4W
Operating pressure ranges between 0.15MPa and 0.7MPa
Operating temperature ranges between -10°C and 50°C
Supplied with surge voltage suppressors (non-polar type)

Certifications

IP65 rated

Datasheet
