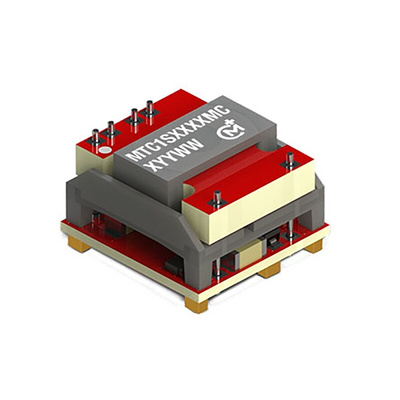

MTC1S2405MC-R7, Murata Power Solutions MTC1 DC-DC Converter, 5V dc/ 200mA Output, 18 → 36 V dc Input, 1W, Surface Mount, +100°C, Преобразователь

Murata Isolated 1W Single Output DC/DC Converter - MTC1 Series

The Murata MTC1 is a series of 1W, regulated, single output DC/DC converters, with nominal input voltages of 12 or 24 VDC, accommodating a 2:1 input range around the selected nominal voltage. These surface mount DC-DC converters comprises six single output models providing 3.3, 5 or 12 Vdc for both the 12 and 24 Vdc nominal inputs. No additional regulation components are required since the MTC1 output is fully regulated within +/- 0.5% of stated output. This series of isolated DC-DC converters features a voltage trim pin, which allows adjustment of the output voltage by +/- 10% to suit any special voltage requirements. A remote on/off pin provides the ability to disable the output for application power saving. The MTC1 isolated DC-DC converters are suitable for use in a wide range of medical and healthcare applications as well as industrial, telecommunications, battery powered systems, and process automation.

3kVac isolation test voltage
Output Voltage Trim
Remote on/off pin
No electrolytic capacitors
Operating temperature range -40°C to 105°C
2:1 Input Range

Approvals

UL 60950, ANSI/AAMI ES60601-1, 2 MOOPs pending
