NXE1S0505MC-R7, Murata Power Solutions NXE1 DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Surface Mount, +85°C, Преобразователь

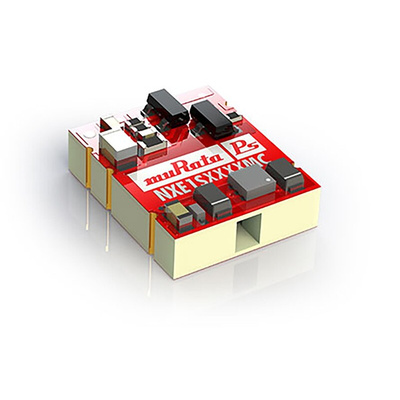

Murata Isolated 1W Single Output DC/DC Converter - NXE1 Series

The Murata NXE1 is a series of low cost 1 Watt DC-DC converters. These ultra-compact surface mount DC-DC converters have a profile over 30% lower than the industry standard of 7mm and a transformer that is embedded in the substrate, making them perfect for use where space is critical. With an industry standard pin compatible footprint the NXE1 series is ideal for a replacement product in existing designs as well as for new compact applications. These isolated DC-DC converters can be used across the full industrial temperature range from -40 to +85 degrees C.

Halogen Free
Patents pending
Lower Profile
3kVDC Isolation “Hi Pot Test”
Substrate Embedded Transformer
Automated Manufacture
Industry Standard Footprint
Short Circuit Protection

Approvals

UL60950, UL60101 pending

Datasheet - Nov
