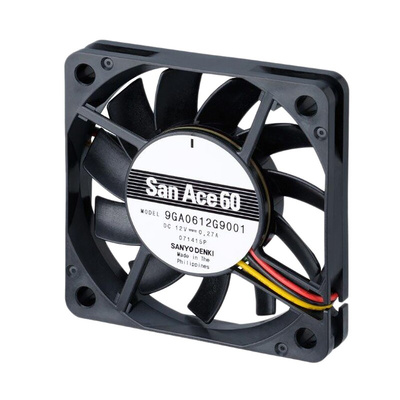

9GA0612G9001, Sanyo Denki San Ace 9GA Series Axial Fan, 12 V dc, DC Operation, 37m³/h, 3.24W, 270mA Max, 60 x 60 x 10mm, Вентилятор

San Ace Low Power DC Fans - GA Series

San Ace GA series low power DC fans are a highly power efficient solution to a range of fan requirements. Featuring high air flow, high static pressure and low noise.

Low power high performance fans offering 15% to 38% energy saving over conventional fans
Improved impeller, guided vanes, reduced mass, reduced noise by between 2dB and 6dB
PWM control to further optimise power consumption and noise level (except 60 x 60 x10 mm frame size which have tachometer output only)
High static pressure and high airflow
Static pressure optimised at inflection point where fan operated for high impedance applications
30,000 to 60,000 hour life fans @ 60 Degree C
Permanently lubricated dual ball bearing system

Sanyo Denki Axial Fan, 12V DC Voltage Rating, 6200rpm Fan Speed - San Ace 9GA Series - 9GA0612G9001

Looking for an energy-efficient cooling solution for your system? Choose this axial fan from Sanyo Denki. It consumes only 3.24W of power and has a voltage rating of 12V DC, making it suitable for low-power systems. The dual ball bearing setup reduces friction inside the component, resulting in smooth performance and reduced wear for a prolonged service life. This fan emits a low sound output level of only 43dB, ensuring minimal noise disruption in your work environment.

Features & Benefits

• Air flow rate of 37m³/h and fan speed of 6200rpm for powerful cooling
• Plastic impeller and frame are self-extinguishing for safety in the event of a fire
• Long lifespan of 70,000 hours at +40°C for long-lasting use
• Lead wire termination for ease of installation
• Light weight of 35g to place minimal strain on your enclosure

Applications

• Industrial ventilation systems
• Thermal management tools
• Server rooms

Will this axial fan function at high temperatures?

Yes, it has a broad operating temperature range between -20°C and +60°C, so it's suitable for use in harsh conditions such as high-heat environments.

9GA0612G9001

San Ace Cooling Fan Catalogue

Manual - Fan Instruction
