T12059, 3M Scotch 1205 Amber Polyimide Film Electrical Tape, 9mm x 33m, Изоляционная лента

3M™ Polyimide Film Electrical Tape 1205

3M™ Polyimide Film Electrical Tape 1205
3M™ 1205 Electrical Tape has a polyimide film backing with acrylic adhesive. Its acrylic pressure-sensitive adhesive allows it to be used at high temperatures, and it is flame retardant.

Features and Benefits

• Polyimide film tape with acrylic pressure-sensitive adhesive Specially designed for high-temperature applications requiring a thin puncture-resistant backing
• The solvent-resistant version of 92 Tape
• 1 mm film
• UL 510 Flame Retardant

Application

This tape is designed especially for high-temperature applications that require a thin puncture resistant backing. The 1 mm film is not only thin but very tough requiring applications that require printability and solvent/flame resistance (UL150).

Can wires with exposed cables be made safe with this tape?

Yes, the electrical tape is designed for this purpose but it is important to seek professional advice when dealing with exposed wires.

What are electrical tapes?

A range of tapes designed for electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

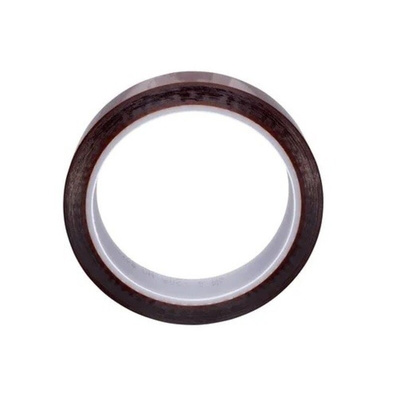

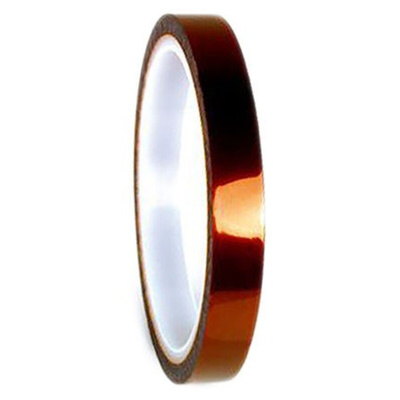

3M Electrical Tape, Amber, 9mm Width - T12059

For safe electrical insulation in demanding work areas, choose this polyimide film electrical tape from 3M. Thanks to its pressure-sensitive acrylic adhesive, it achieves a firm bond without the need for heat or solvents. As it has a UL 510 flame-retardant rating, the tape minimises the risk of fires that can start when electronic components overheat. A roll length of 33m means you'll have plenty on hand.

• Acrylic pressure-sensitive adhesive for protection against chemicals
• Polyimide film backing for safe use at temperatures from -40°C to +155°C
• Tensile strength of 53N/10mm prevents breaking and supports a longer lifespan

Applications

• Capacitor and transformer wrapping
• High-voltage electrical systems

Can I use this tape on high-voltage electrical systems?

Yes, even when exposed to voltages up to and greater than 7,500V, this tape maintains its insulating properties.

Why choose 3M?

3M are a trusted name in tapes and adhesives. Whether for industrial or even domestic applications, 3M has a tape to suit your needs. From automotive masking to office supplies, 3M tapes are relied on by millions to get the job done. RS supplies a wide range of quality 3M tapes to suit the needs of the most discerning customer.

3M Tape Selector

Need advice on choosing the right Tape? Use our Product Selector to help you make the right choice!

Electrical Tapes

For electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

3M Polyimide Film Electrical Tape 1205 - Datasheet
