T119412, 3M 1194 Non-Conductive Metallic Tape, 12mm x 33m, Медная лента

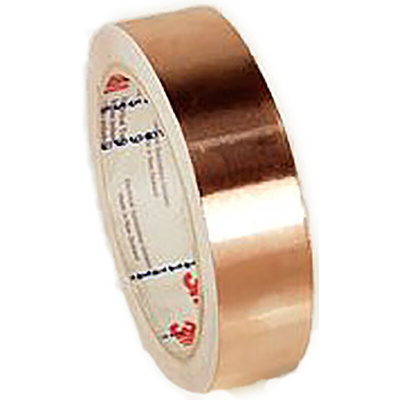

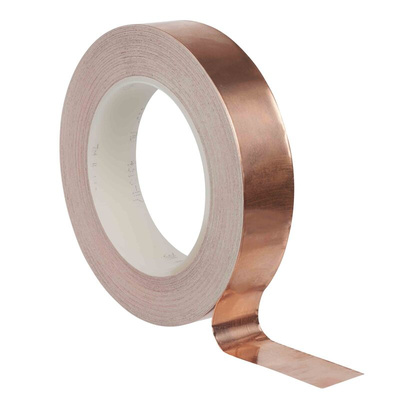

3M™ Copper Shielding Tape 1194

The copper foil shielding tape 1194, has a 1.4-mil smooth copper foil backing and a non-conductive acrylic pressure sensitive adhesive and liner. This makes them ideal for applications where a tape which does not drain the static charge to a grounded substrate is required.

Features and Benefits

• Nonconductive acrylic adhesive
• Typically applications are, electrical bonding, grounding, and EMI shielding
• The copper foil backing is solderable and resists oxidation and discoloration

Applications

Common uses include grounding and EMI shielding in equipment, components and shielded rooms.

Why choose 3M?

3M are a trusted name in tapes and adhesives solutions. From industrial and electronic applications to meeting domestic requirements, 3M supply high quality and reliable tapes and adhesives. RS Components partners with 3M to deliver an extensive and inclusive range of excellent 3M products, with the fantastic and convenient consumer service.

Similar 3M Tapes within this Range

• 110-8054 is a 3M 1181 Conductive Copper Tape, 12.7mm x 16m
• 167-9376 is a 3M 1181 Conductive Copper Tape, 50.8mm x 16m
• 842-0360 is a 3M 1182 Conductive Tin Clad Copper Tape, 19.1mm x 16m
• 842-0409 is a 3M 1183 Conductive Tin Clad Copper Tape, 19.1mm x 16m
• 842-0364 is a 3M 1194 Non-Conductive Tin Clad Metallic Tape, 19.1mm x 33m
• 842-0370 is a 3M 1267 Conductive Metallic Tape, 25.4mm x 16m
• 842-0367 is a 3M 1345 Conductive Tin Clad Metallic Tape, 19.1mm x 16m

EMI/RFI Shielding Tapes

When using these tapes galvanic compatibility should be taken into account.

3M Copper Foil Tape 1194 - Datasheet
