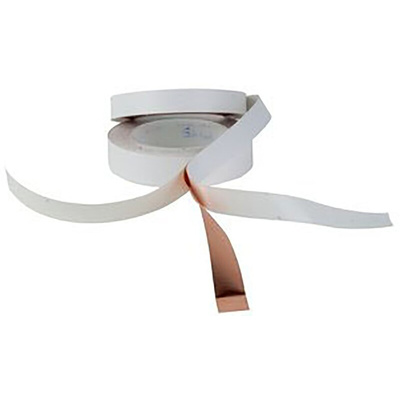

T118212, 3M 1182 Conductive Metallic Tape, 12mm x 16m, Медная лента

8855189
Номер производителя: T118212Производитель: 3M
Цена за шт.
15420.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

3M™ Copper Foil Shielding Tape 1182

The Copper foil shielding tape 1182, has a 1.4-mil copper foil backing, a conductive acrylic pressure sensitive adhesive on both sides, and a liner.

Features and Benefits:

• EMI Copper foil shielding tape
• Deadsoft 1-ounce copper foil backing
• Double-coated conductive adhesive makes an excellent conductive gasket

Applications:

Used to bond 2 surfaces together, both electrically and physically, such as EMI shielding, grounding and static charge draining.

Why choose 3M?

3M are a trusted name in tapes and adhesives solutions. From industrial and electronic applications to meeting domestic requirements, 3M supply high quality and reliable tapes and adhesives. RS Components partners with 3M to deliver an extensive and inclusive range of excellent 3M products, with the fantastic and convenient consumer service our customers rely on.

Similar 3M Tapes within this Range

• 110-8054 is a 3M 1181 Conductive Copper Tape, 12.7mm x 16m
• 167-9376 is a 3M 1181 Conductive Copper Tape, 50.8mm x 16m
• 842-0360 is a 3M 1182 Conductive Tin Clad Copper Tape, 19.1mm x 16m
• 842-0409 is a 3M 1183 Conductive Tin Clad Copper Tape, 19.1mm x 16m
• 842-0364 is a 3M 1194 Non-Conductive Tin Clad Metallic Tape, 19.1mm x 33m
• 842-0370 is a 3M 1267 Conductive Metallic Tape, 25.4mm x 16m
• 842-0367 is a 3M 1345 Conductive Tin Clad Metallic Tape, 19.1mm x 16m

3M Conductive Copper Tape, 12mm (W) x 16m (L) - 1182 Series - T118212

This conductive copper foil tape from 3M is an ideal choice when you need to bond two surfaces together both electrically and physically. Use it for electromagnetic shielding, grounding or static charge draining. Its operating temperature range of -40°C to +130°C means it'll maintain performance in environments where other tapes would come unstuck. Tensile strength of 44N/cm gives this tape durability, making it suitable for use in hard-to-reach areas. The double-coated conductive adhesive means it can serve as an excellent conductive gasket.

• Supplied on a removable liner to make it easy to handle and die-cut• Adhesion strength of 3.8N/cm keeps it firmly in place

Applications

• Electromagnetic shielding of equipment• Grounding• Static charge draining

What kind of applications is conductive copper tape suitable for?

Copper tape that uses a conductive adhesive is only suitable for low-current applications, as the adhesive isn't designed to carry a high current. You can use copper tape to create a container, known as a Faraday cage, that'll protect what's inside it from external electrical fields – for example, in an electric guitar to protect the components from unwanted electronic feedback.

EMI/RFI Shielding Tapes

When using these tapes galvanic compatibility should be taken into account.

Техническая спецификация
pdf3M Copper Foil Tape 1182 - Datasheet
Длина:
16м
Клейкое вещество:
Акрил
Максимальное сопротивление температуры:
+130°C
Минимальное сопротивление температуры:
-40°C
Модель номер:
1182
Общая толщина:
0.09мм
Покрытие материала:
Нет
Предел прочности на разрыв:
44Н/см
Проводимость:
Conductive
Прочность сцепления:
3.8 Н/см
Тип ленты:
Copper Tape
Толщина фольги:
0.04мм
Ширина:
12мм
