T12456, 3M 1245 Conductive Copper Tape, 6mm x 16m, Медная лента

3M Copper Tapes

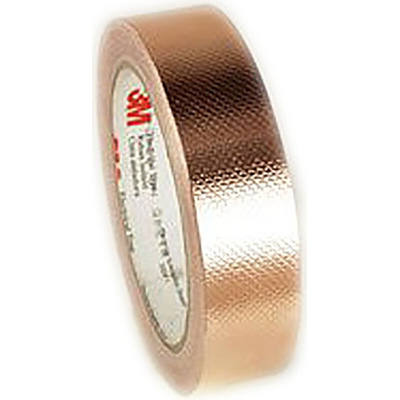

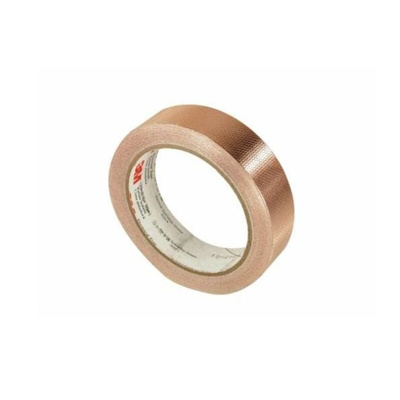

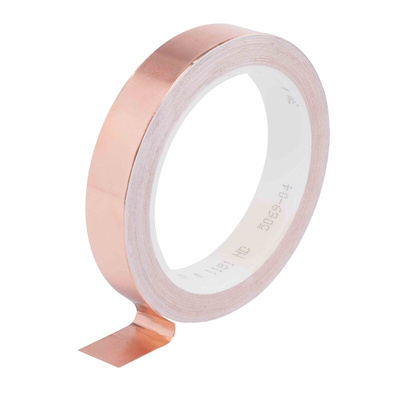

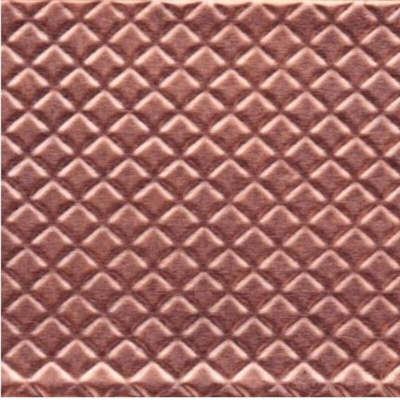

The 3M 1245 copper tape consists of 1-ounce dead soft copper foil backing and unique electrically conductive pressure-sensitive acrylic adhesive. This tape is 0.10mm thick, 6mm wide and 16m long. The copper foil backing is solderable and resists oxidation and discolouration. The edges of the embossed pattern are pressed into the foil cut through the adhesive layer to establish reliable metal-to-metal contact between the backing and the application substrate. The embossing helps make excellent contact through the acrylic adhesive. As the copper is unplaited, it is ideally suited to non-corrosive conditions.

EMI/RFI shielding tapes:
When using this tape, galvanic compatibility should be taken into account.

Features and Benefits

• Adhesion strength is 3.8N/cm
• Breaking load is 44N/10mm
• Backing thickness is 0.04mm
• Conductivity through the adhesive
• Operating temperature ranges between -40°C and 130°C
• Supplied on a removable liner for easy handling and die-cutting

Applications

• Designed for electromagnetic or radio-electrical shielding
• Suitable for soldering
• Grounding and EMI shielding in equipment
• Components
• Shielded rooms

Why choose 3M?

3M are a trusted name in tapes and adhesives. With a huge range of versatile and specialist tapes, 3M support dozens of industries and applications, from heavy-duty construction to DIY around the home. Whatever your needs, 3M supplies an adhesive tape that won't let you down.

3M Embossed Copper Foil Tape 1245 - Datasheet
