T124525, 3M 1245 Conductive Copper Tape, 25mm x 16m, Медная лента

3M Copper Tapes

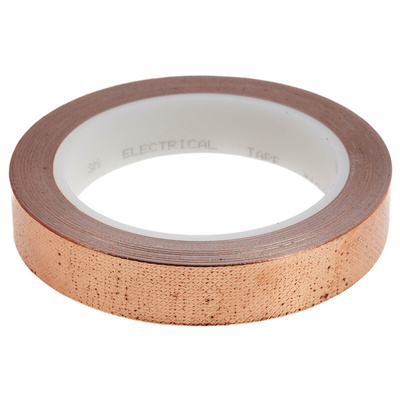

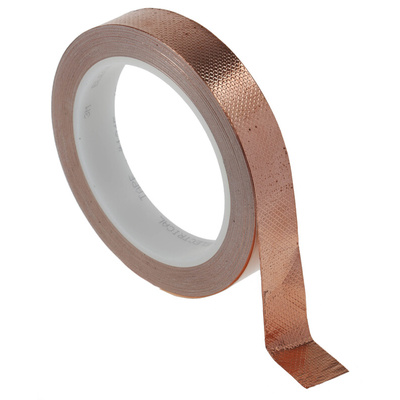

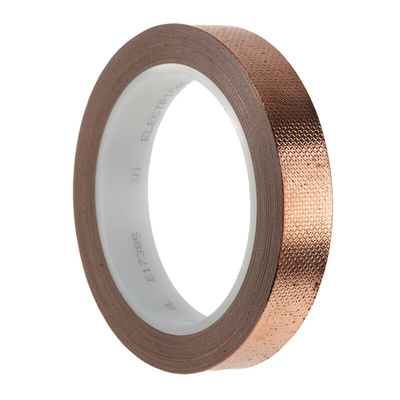

The 3M 1245 copper tape consists of 1-ounce dead soft copper foil backing and unique electrically conductive pressure-sensitive acrylic adhesive. This tape is 0.10mm thick, 25mm wide and 16m long. The copper foil backing is solderable and resists oxidation and discolouration. The edges of the embossed pattern are pressed into the foil cut through the adhesive layer to establish reliable metal-to-metal contact between the backing and the application substrate. The embossing helps make excellent contact through the acrylic adhesive. As the copper is unplaited, it is ideally suited to non-corrosive conditions.

EMI/RFI shielding tapes:
When using this tape, galvanic compatibility should be taken into account.

Features and Benefits

Adhesion strength is 3.8N/cm
Breaking load is 44N/10mm
Backing thickness is 0.04mm
Conductivity through the adhesive
Operating temperature ranges between -40°C and 130°C
Supplied on a removable liner for easy handling and die-cutting

Applications

Designed for electromagnetic or radio-electrical shielding
Suitable for soldering
Grounding and EMI shielding in equipment
, components
, shielded rooms

3M Embossed Copper Foil Tape 1245 - Datasheet
