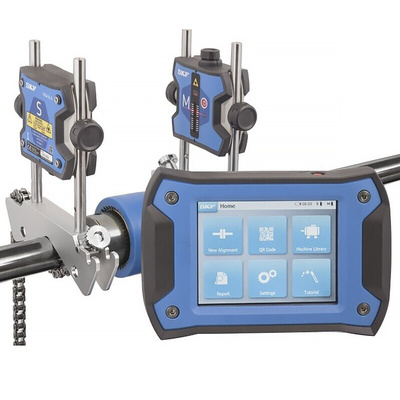

SKF TKSA 41 Laser Alignment Tool

Introducing a laser alignment tool from SKF. The TKSA 41 system is the ideal solution for obtaining accurate measurements in shaft alignment applications. The device guarantees accurate measurements every time even in extreme conditions. The ergonomic design makes this device a joy to use, the display unit has an intuitive touch screen navigation making it fast and easy to use.

Why would you buy this product?

• Wireless communication improves instrument handling
• Automatic measurement enables hands-free measurements
• Automatic reports are generated after each alignment
• Horizontal and vertical alignments.
• Machine library -overview of all machines and alignment reports

Features and Benefits

• Accurate shaft alignments
• 2 wireless measurement units
• Large sized detectors
• Powerful lasers
• 16 hours of continuous use (MU) 8 hours (DU)

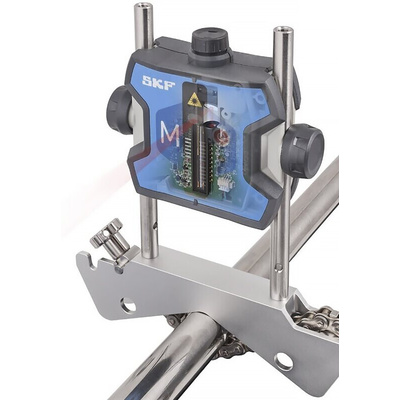

• 2 x V-brackets with chains

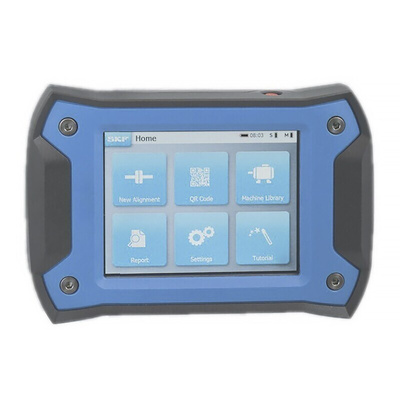

• Ergonomic display unit
• 5.6 in colour resistive touchscreen LCD
• Operating temperature: 0 to 45 °C
• Features an IP rating of IP54

Product Application Information

Shaft alignment is recommended for almost every industry, as it enables machine uptime to be improved and maintenance costs to be reduced. The simplicity of the TKSA 41 provides greater confidence for the performance of alignment tasks on all types of horizontal rotating machines.

Contents

Case Contents: Calibration Certificate, Warranty, 2 x TKSA41 Measuring Unit, TKSA Display Unit, 2x Shaft Brackets with Chains, Chain Tightening Rod, 4 x 90mm Extension Rods, Power Supply with Country Adapters, 2 x Micro USB to USB Cables, 5m (16ft) Metric/Imperial Measuring Tape, Quick Start Guide, 12 QR Code Stickers, SKF Carrying Case ( Dimensions of carry case - 530 x 110 x 360 mm)

SKF Alignment Laser, 0.07 to 4m Measuring Range, LCD Display - TKSA 41

Need a reliable way to check you've properly assembled your hardware? This alignment laser from SKF measures the positioning of your machine shafts with an accuracy of ±5μm, letting you precisely set up your equipment to ensure efficient operation. Thanks to a measuring distance range between 0.07 and 4m, it's suitable for use with both small and large components. The touchscreen display is simple and intuitive to use, so getting started is easy. As the laser can take measurements with a short sweep of 90°, it gives you quick assessments.

Features & Benefits

• Wireless connection lets you move freely for easy measuring in awkward spaces
• Automatically generates alignment reports that support annotations for convenient review
• Measurement device battery life of up to 12 hours for long-lasting use
• IP54 rating indicates resistance to limited amounts of dust and water splashes

Applications

• Material handling
• Oil and gas processing
• Automotive repairs

Does this alignment laser come with a carry case?

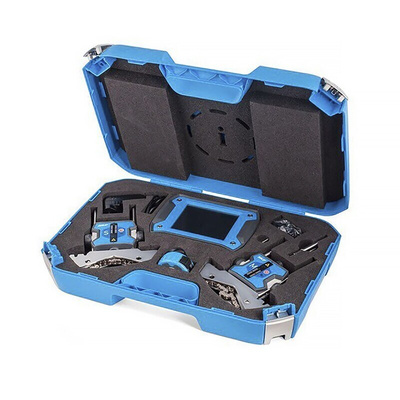

Yes, this unit is supplied in a hard-wearing carry case with foam lining and pre-cut sections for each component. This helps to protect the device against knocks and bumps during transport.

Laser Shaft Alignment Tools

Incorrect shaft alignment can contribute to premature bearing failures, shaft fatigue, seal problems vibration and overheating. SKF’s range of laser alignment tools provides maintenance engineers with a highly accurate and easy to use solution to these problems that is more accurate and faster than traditional dial test indicator methods, removing the need for consuming calculations by the engineer.

Why is shaft alignment important?

Regular shaft alignment checks are recommended for horizontal rotating machinery to ensure they are working to their optimum level while reducing maintenance costs. The TKSA 41 offers excellent performance and is one of the best value shaft alignment tool solutions.
