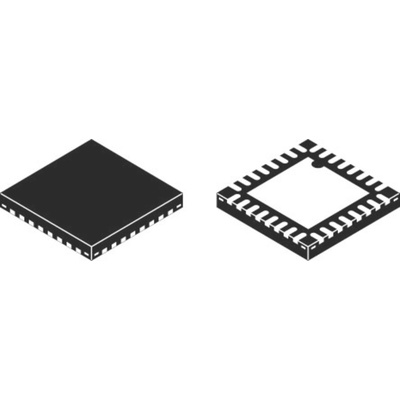

Nordic Semiconductor NRF8001-R2Q32-T, System On Chip SOC for Health Care Sensors, Personal User Interface Devices, Микросхема

nRF8001 Bluetooth Smart/BLE 2.4GHz Transceiver

The Nordic Semiconductor nRF8001 is a wireless transceiver designed for Bluetooth Smart applications that operate in the Peripheral (Slave) mode. It integrates a fully compliant Bluetooth Smart 4.0 Radio, Link Layer, and Host stack in a QFN32 package..

RF Frequency Band: 2.4GHz ISM-Band
RF Output Power: Up to 0dBm
Receiver Sensitivity: -87dBm @ 1Mbps
OTA Data Rate: 1Mbps
Fully Bluetooth Smart 4.0 compliant
Embedded Bluetooth Smart stack
LL, L2CAP, GAP, SM, ATT and GATT mandatory features for peripheral role operation
'Just Works' and ’MITM’ security
GATT Client and GATT Server
Direct Test Mode
On-board temperature sensor
Host communication: 5-pin serial SPI
Power supply: +1.9V to +3.6Vdc (will run from 3V coin cell)
Operating Temperature Range: -40 to +85ºC
Applications: Mobile phone accessories, Proximity tags and watches, Sports, fitness, and healthcare sensors, PC peripherals, Consumer electronics (CE) remote controls, Home and industrial automation, Local Communication for the Internet of Things (IoT)
